Description:

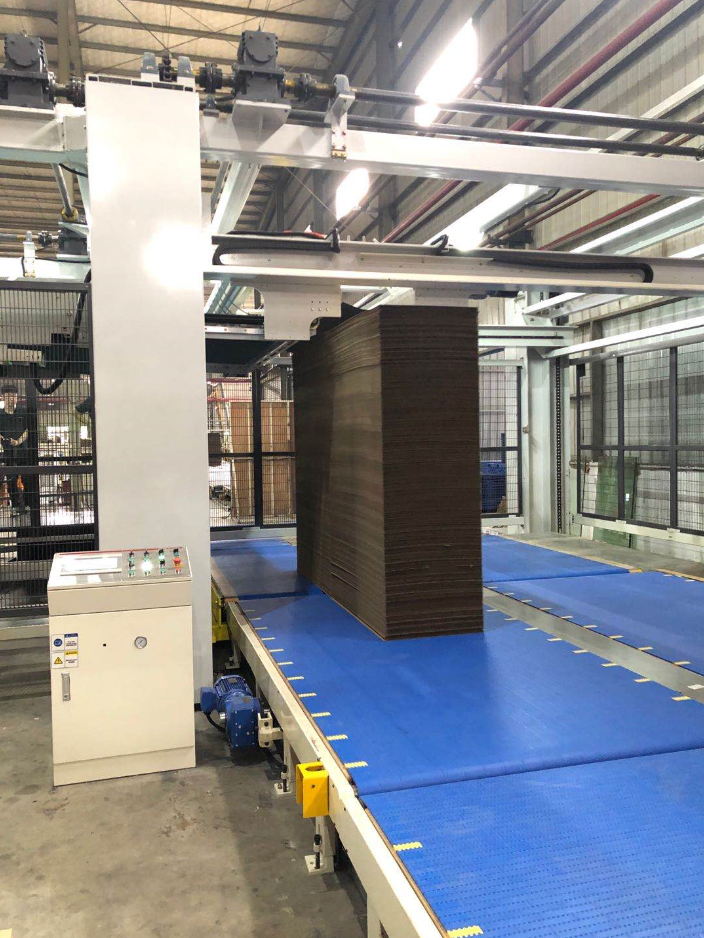

- Servo motor lifting stacking device, which can reduce the uniform speed of the hanging basket, and the cardboard enters the hanging basket. There will be no creases.
- Six independent conveyor belts, controlled by six 5HP variable frequency motors, depending on the length of the board, the order quantity and different production speeds, resulting in different belt speeds.
- Multi-order way to stack paper to facilitate small order production.
- The size of the tailgate is adjusted by electric control.
- Adopt computerized automatic control to ensure that the stacker can accept the conversion of any accurate order, and the paper calculation.
- Optional double layer stacker for double NC cutter.
- Optional Speed: 250m/min, 300m/min, 350m/min, 400m/min.
- Optional Size: 1800mm, 2200mm, 2500mm, 2800mm.
- Optional Up Stacker.
- Optional Zigzig Stacking type.

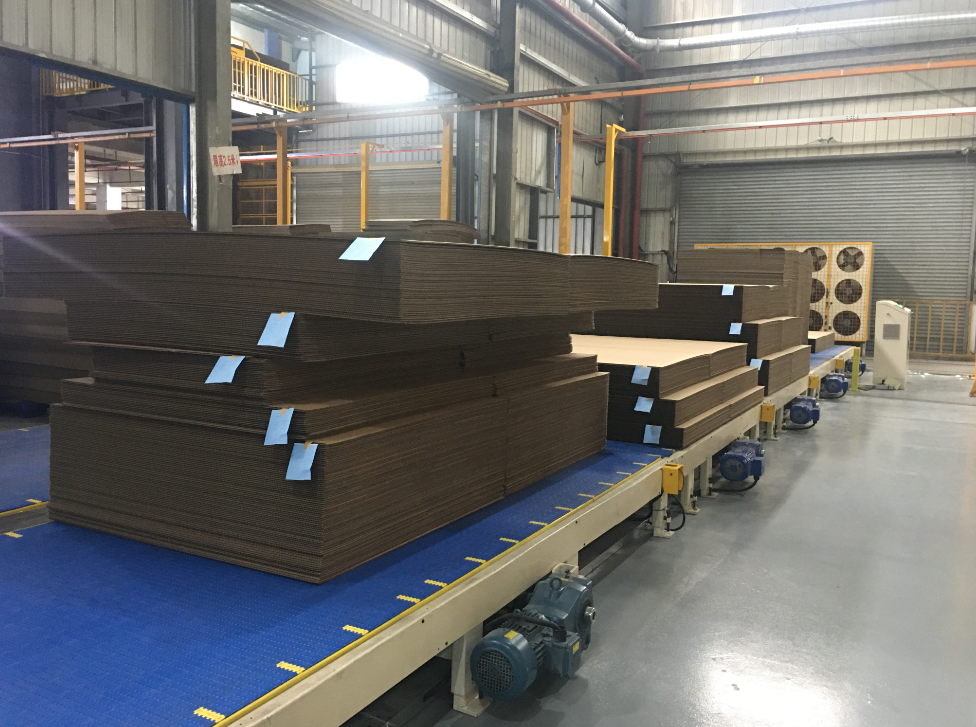

- Optional Centerline Alignment Stacking type.
