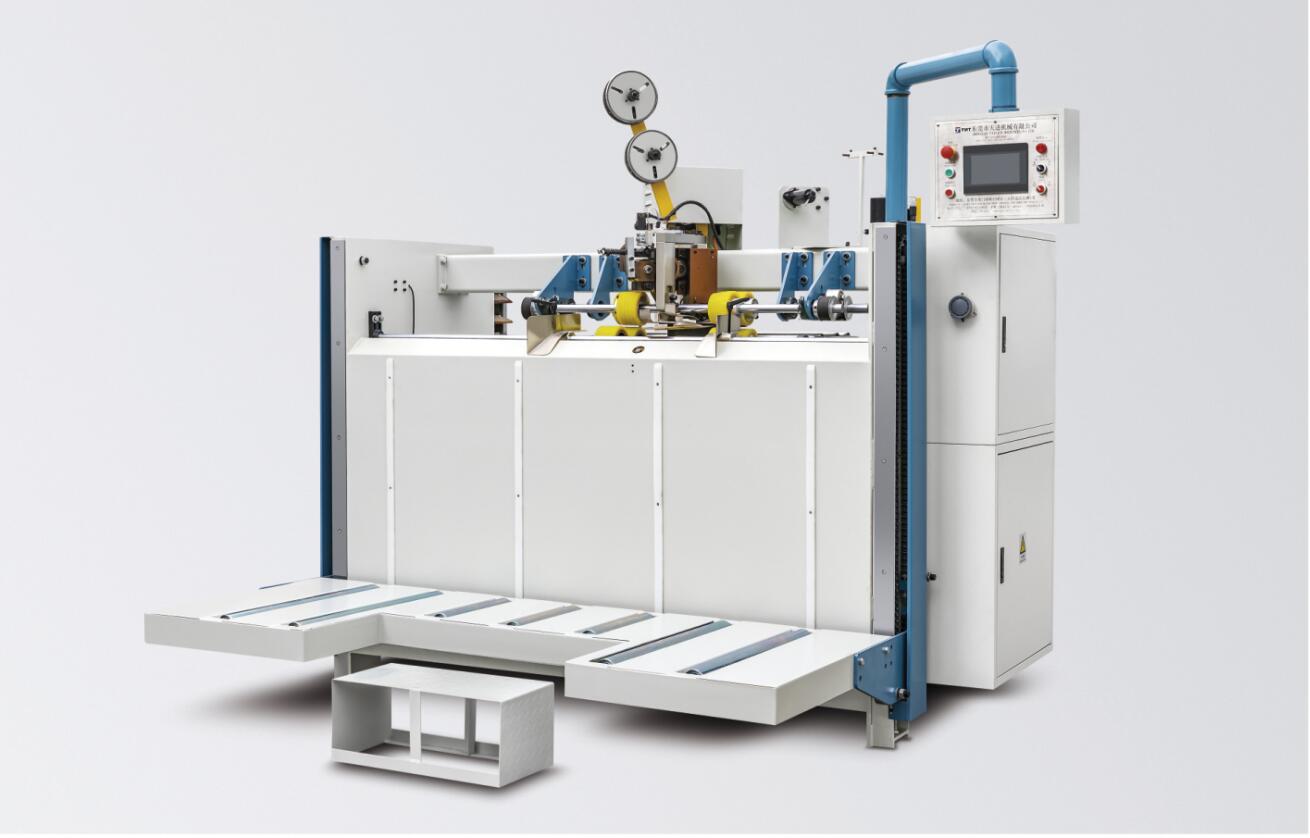

Description:
1. Double Servo drive, more convenient operation, fewer mechanical transimssion parts and lower failure rate.
2. Touch screen operation, the paratmeters (nail distance, nail number, nail type, rear baffle) can be changed easily and quickly.
3. Single nails (///), double nails (// // //), reinforced nails (// / //) are available for customers' requirements.
4. Order size change in 1 mintue.
5. The feeding section counts (1-99) automatically and sends out after bunching, which is convenient for bundling.
| Machine Speed (nail/min) | 500 |
| Nail Distance (mm) | 0~100 |
| Nail Number | 1~99 |
| Nial Type | Single Nail (///), Double Nail (// // //), Reinforced Nail (// / //) |
| Max. Paper Size (mm) | 1515 x 2800 |
| Min. Paper Size (mm) | 300 x 606 |
| Power (hp) | 6 |
| Machine Weight (kg) | 2000 |
| Paper feeder Height (mm) | 900 |
| Suitable Paperboard | 3ply, 5ply, 7ply(need to customized) 3mm~8mm |
| Nail Wire Specification | 2mm (0.65mm ~ 0.75mm) |
