Technical Parameters
|
Item |
1300 |
1450 |
1620 |
1880 |
2100 |
|
Max sheet size |
1330mm*980mm |
1480mm*1080mm |
1650mm*1210mm |
1880mm*1420mm |
2100mm*14200mm |
|
Min sheet size |
550mm*480mm |
550mm*480mm |
650mm*500mm |
650mm*500mm |
650mm*500mm |
|
Die cutting accuracy |
±0.4mm |
±0.4mm |
±0.4mm |
±0.4mm |
±0.4mm |
|
Max cutting pressure |
400T |
400T |
300T |
300T |
300T |
|
Pressure adjustable range |
±1mm |
±1mm |
±1mm |
±1mm |
±1mm |
|
Min front waste edge size |
≥8mm |
≥8mm |
≥8mm |
≥8mm |
≥8mm |
|
Max mechanical speed |
4200S/H |
4200S/H |
4000S/H |
3000S/H |
3000S/H |
|
Total power |
17KW |
20.5KW |
20.5KW |
25.5KW |
26.5KW |
|
Total weight |
≈17T |
≈19T |
≈21T |
≈25.5T |
≈27.5T |
Feeding unit
Die cutting unit
Equipped with overload protection mechanism, the realization of accidental overload, the master and slave dynamic separation of the unique energy efficiency of the die-cutting plate frame to prevent the sagging and detachment of the die-cutting plate.
Transmission System Unit
Main engine cast iron adopts QT500 ductile iron

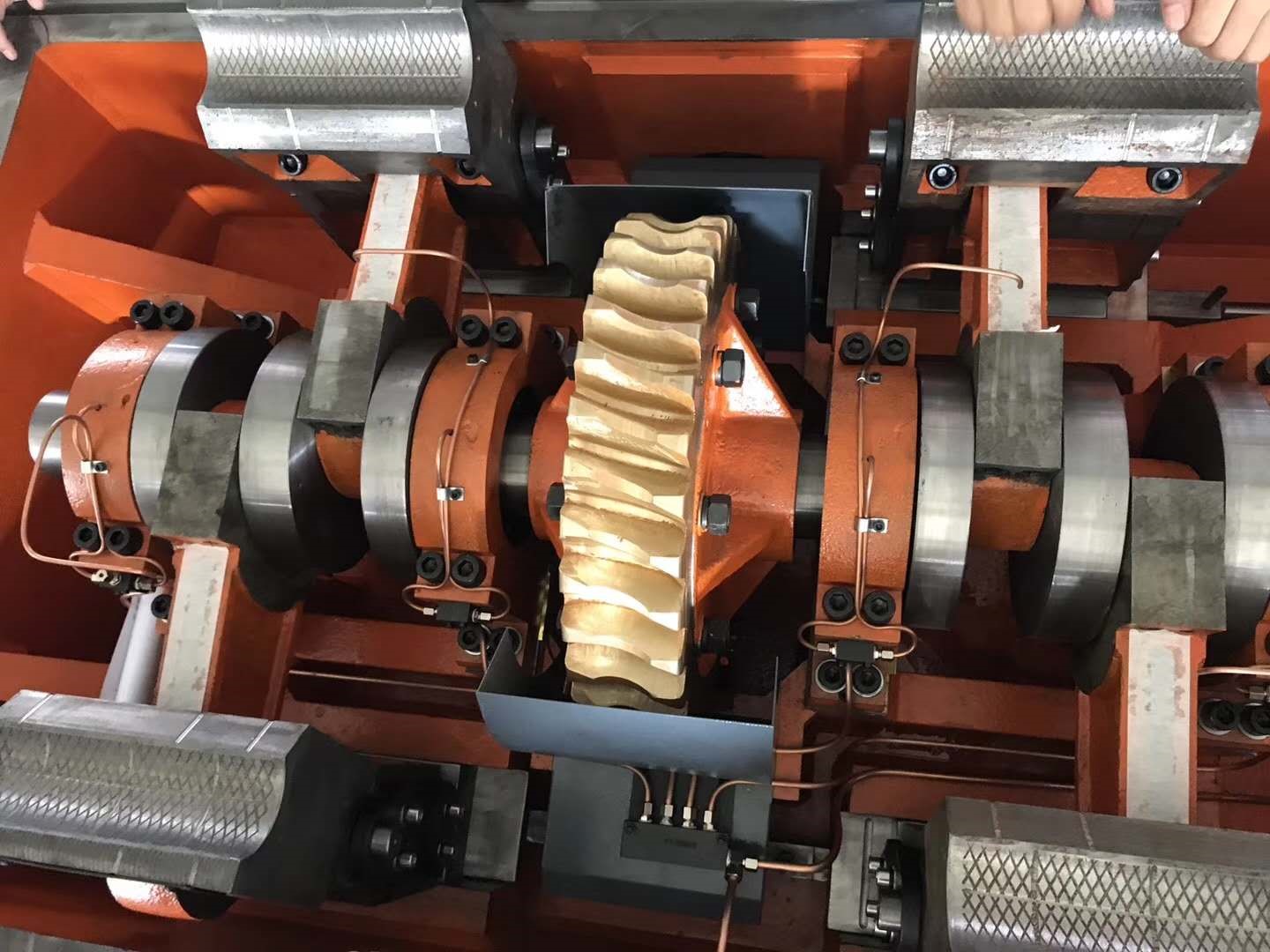

Worm, crankshaft and other key parts are all artificially ground and heat treated for long service life.
Die - cutting steel plate using manganese steel, than the general hardness and wear resistance of steel plate 4-5 times.

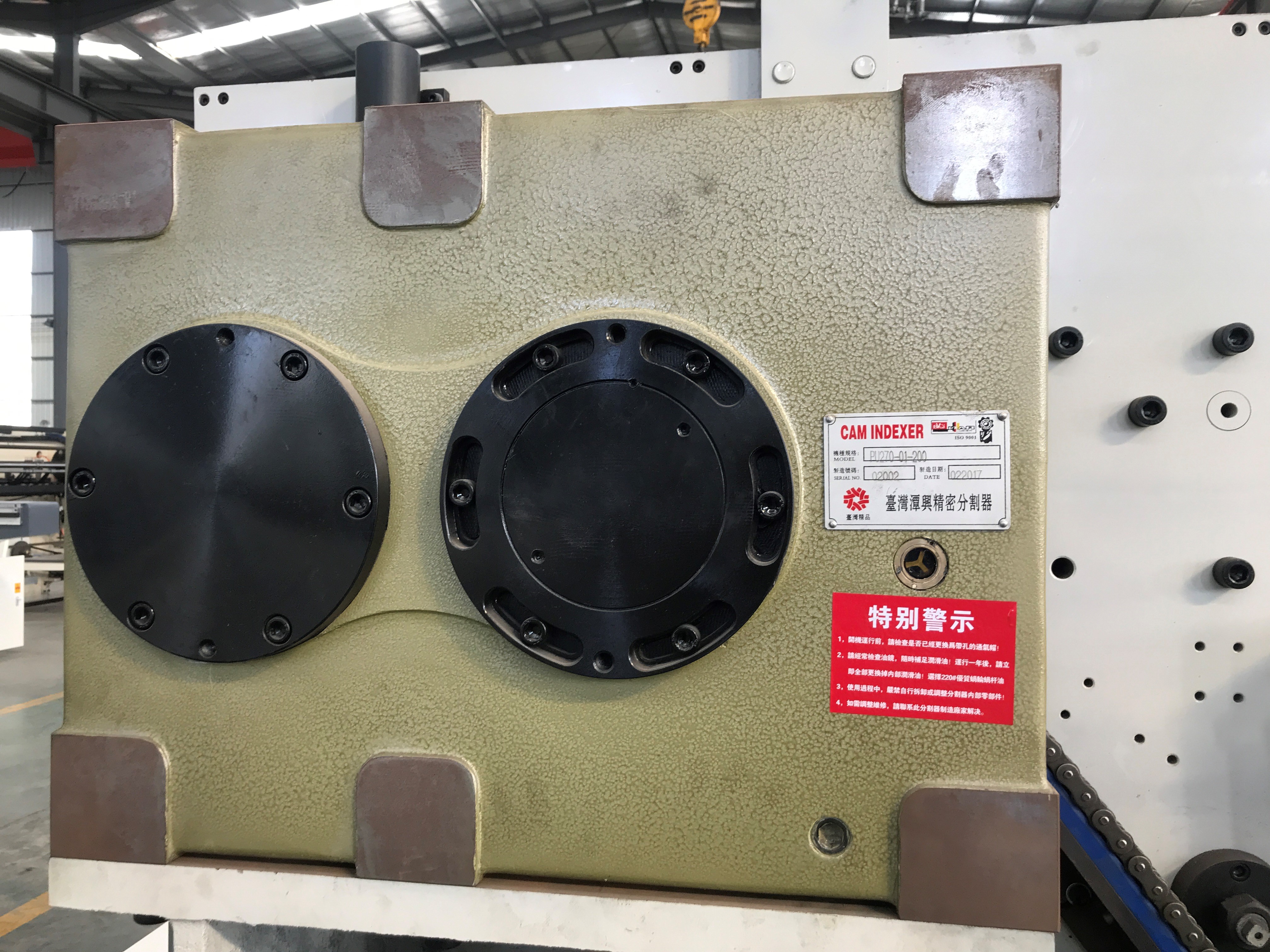

*Taiwan CAM divider

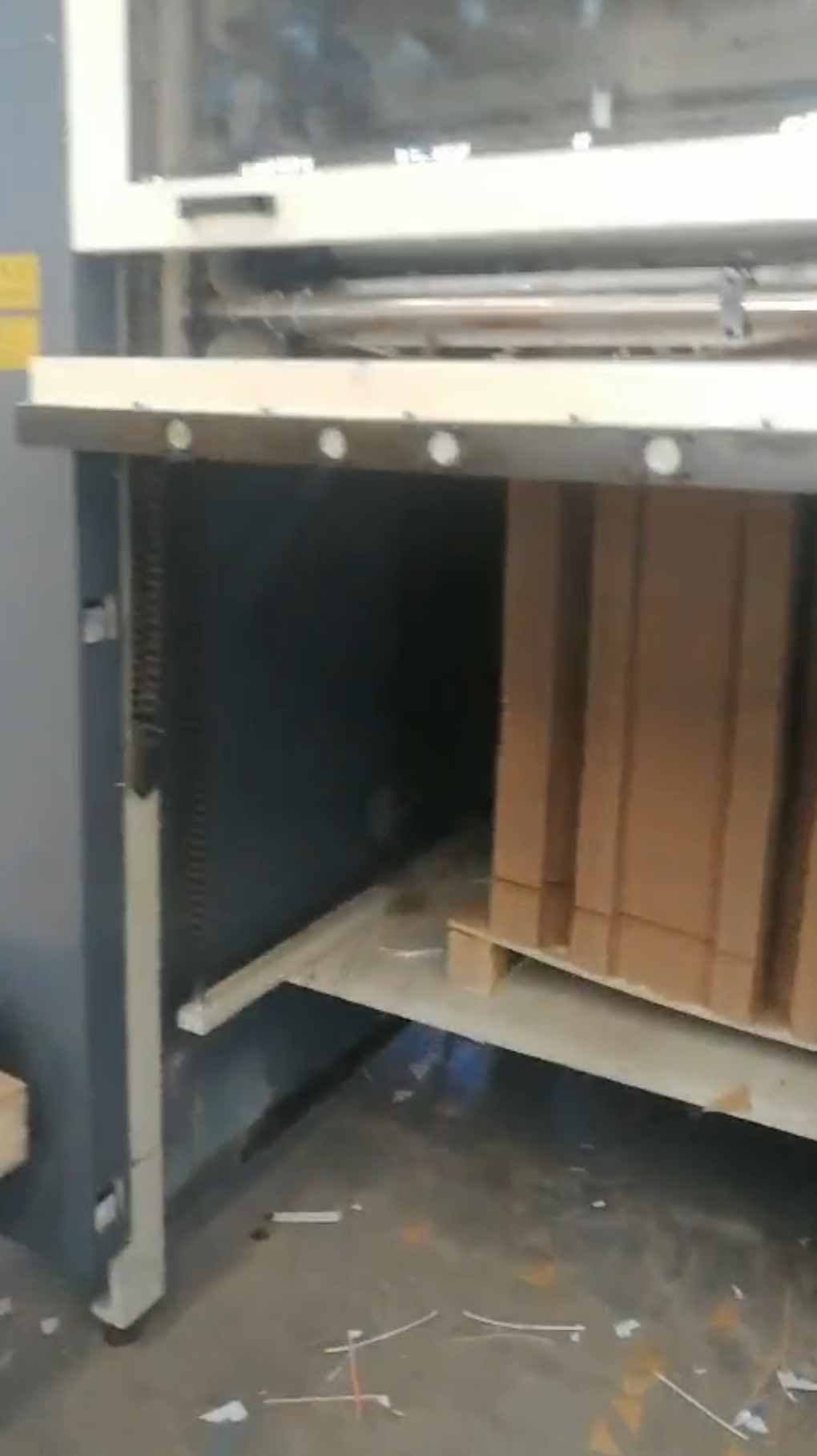

Delivery Unit
- Equipped with depth stacking type.
