Main technical parameters
|
Item |
1400*2000 |
1400*2400 |
|
Max feeding speed(pcs/min) |
160 |
160 |
|
Common speed(pcs/min) |
90-120 |
90-120 |
|
Max die cutting size(mm) |
1380×2000 |
1380×2000 |
|
Min die cutting size(mm) |
400×600 |
400×600 |
|
Applicant Cardboard thickness(mm) |
2-11 |
2-11 |
|
Die cutting accuracy(mm) |
±1 |
±1 |
|
Main motor power (kw) |
7.5 |
7.5 |

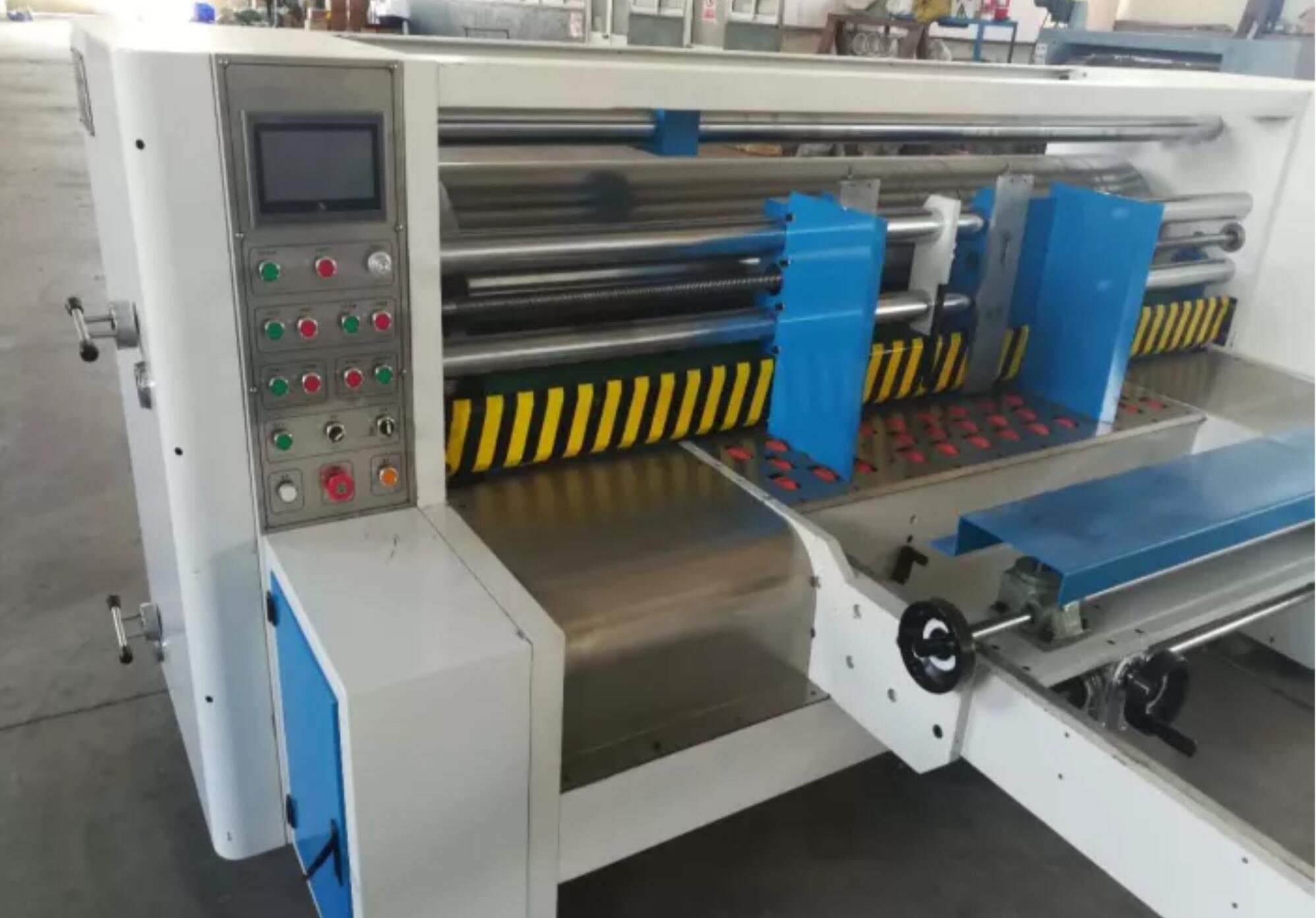

Feeding Unit (Lead edge feeding with AC servo control system)
- Feeding unit using Yaskawa servo control system, using electronic CAM segmentation technology to replace the complex mechanical CAM segmentation device work, fundamentally solve the mechanical CAM can not eliminate the air gap, so as to ensure the accuracy of positioning and paper feeding accuracy. Servo control technology is characterized by high precision, high speed and good stability.
- Equipped with gently feed device, paper guide roller with groove surface, to prevent damage to the cardboard strength, ensure the paper feed precision and cardboard physical properties.
- The fan is controlled by frequency conversion, reducing consumption, adjustable air pressure and effectively controlling board bending.
- The left and right baffles are all electrically adjusted, fast and accurate
- Operation system is human-machine interface with touch screen display.
Die cutting unit.
- Die-cutting roller is a high quality seamless steel tube with a wall thickness of 30mm. Internal tempering, surface grinding, hard chromium plating and balancing treatment increase the smooth operation.
- Complete helical gear structure, 45 # high quality forging.
- Die-cutting phase is adjusted by touch screen, 360 degree electric full cycle adjustment, fast, convenient and accurate.
- Wallboard is made of high quality cast iron HT200, wall thickness 40MM, and large processing center.
- The rubber mat rollers adopt automatic grinding mechanism, which greatly improves the life of rubber sleeve.
- The rubber mat roller is equipped with mechanical transverse movement, the distance is 40 mm, the movement speed is balanced and reasonable, so that the rubber mat wears evenly and the service life of the rubber sleeve is prolonged.
- Linear speed automatic compensation device: automatic compensation, die cutting size does not change according to rubber mat wear, to ensure that the die cutting size of each batch of cartons is exactly the same.
- The imported polyurethane rubber mat is easy to install and the die-cutting life reaches 14-16 million times.
- The main motor adopts oil bath lubrication system, which is simple and efficient.
- Template fixed screw hole spacing, axial 100MM, radial 18 equal.
- The lower roll pneumatic lifting device is installed to control the lower roll lifting to ensure that the distance between the two roller is detached when no cardboard passes through. Protect the rubber mat from damage to the greatest extent.
