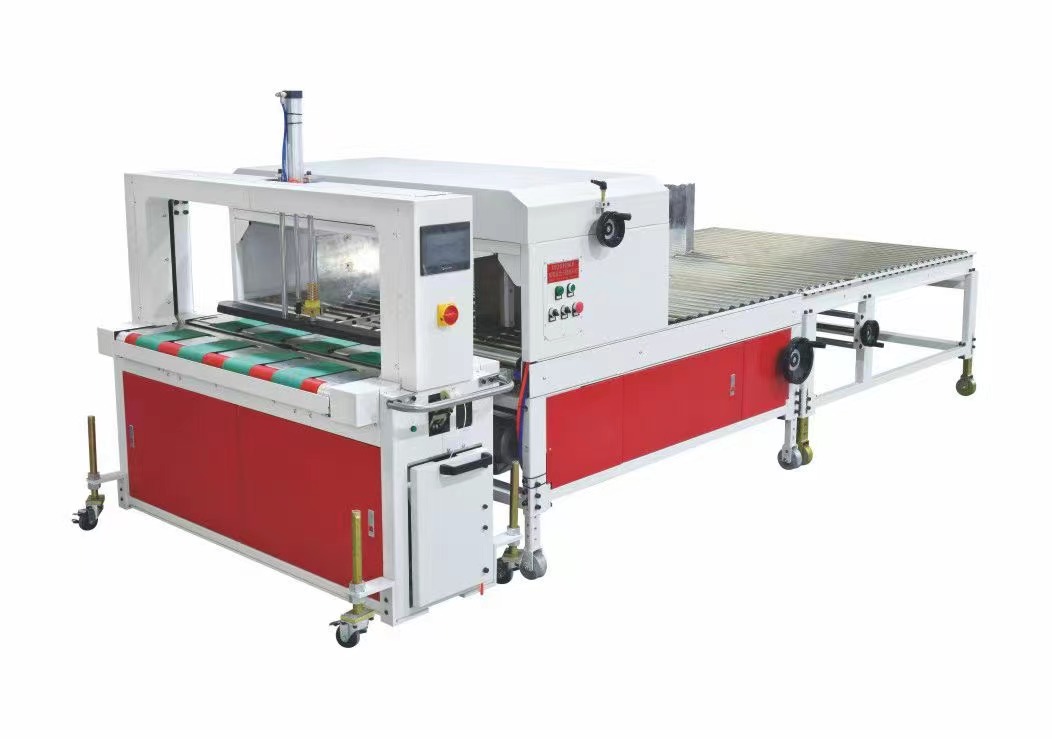

Description:
- Core technology from Germany;
- The world's most advanced high-speed automatic threading technology;
- The world's fastest automatic belt replacement technology;
- The world's fastest packing speed packer (of the same type);
- It can automatically detect and eject the residual tape;
- When the machine is idling, the idling belt loop will pop up automatically;
- 24 volt constant temperature welding system; DC motor, brushless motor technology;
- PLC control system; The paper box stack is conveyed by belt conveyor, and the conveying speed is adjustable;
- The 7-inch main touch screen control system can automatically warn and prompt the fault position;
- The packing force can be adjusted; You can select single channel or double channel;
- The belt conveyor worktable can better protect the carton stack and can be combined with multiple production lines;
- It can quickly set the work order, packaging position, packaging tension, etc.
- Machine color: optional
- The maximum speed of the machine can reach 38 packets or more per minute.
Technical data:
Equipment installation length 800 mm
Table height 820mm – 930 mm (adjustable)
Packing speed (without pressing plate):
A single packing can reach 16-20 bales per minute (depending on the size of the carton), when the belt conveying speed is 0.6 m / s.
Double strip packing can reach 9-12 bales / min (depending on the size of the carton), when the belt conveying speed is 0.6 m / s.
Materials used:
Standard PP packing belt, width 5mm
Packing coil: core diameter: 200mm; Core width: 190mm
Power Supply
Voltage: 220 V, 50 Hz, 3 pH, 16 A CEE – plug off: approx. 2.5 KVA
Pneumatic device
6 bar compressed air, 1/4 "quick action clutch; air consumption 25 cycles / min: ca. 130 L / min
