Partition Machine | Corrugated Sheet Partitioner

Name: Partition Machine | Corrugated Sheet Partitioner
Brand: Master
SKU: 18051907601299063306870487
Rating: 0 (0 reviews)

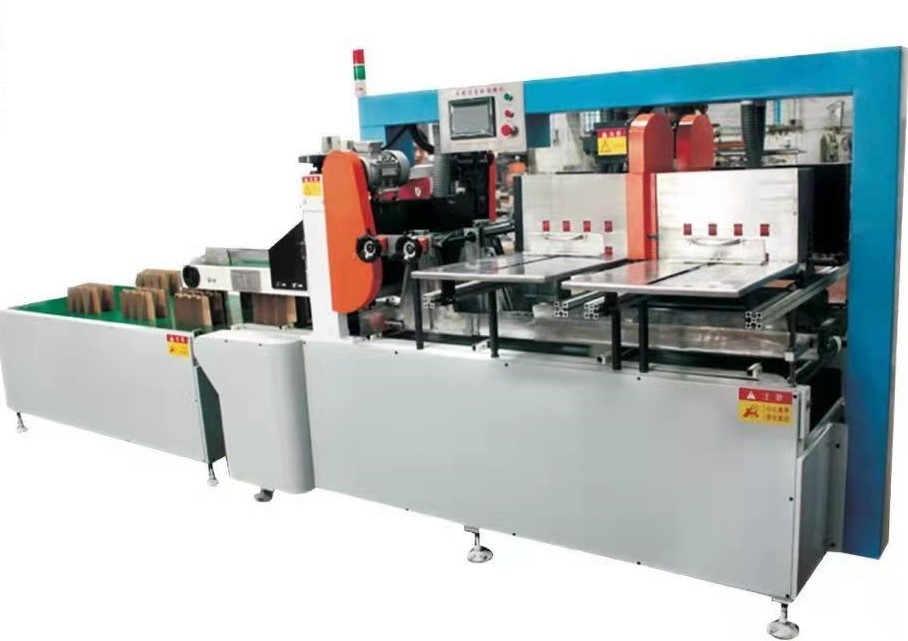

This the latest technology of Corrugated Partition Machine with lead edge vacuum feeder, more stable and faster than traditional suction cup feeder.

Specification:

Model	460D	540D
Speed	2~52(104) sets/min	2-45 (90) sets/min
Composite mode	4 x N (optional 6 x N)

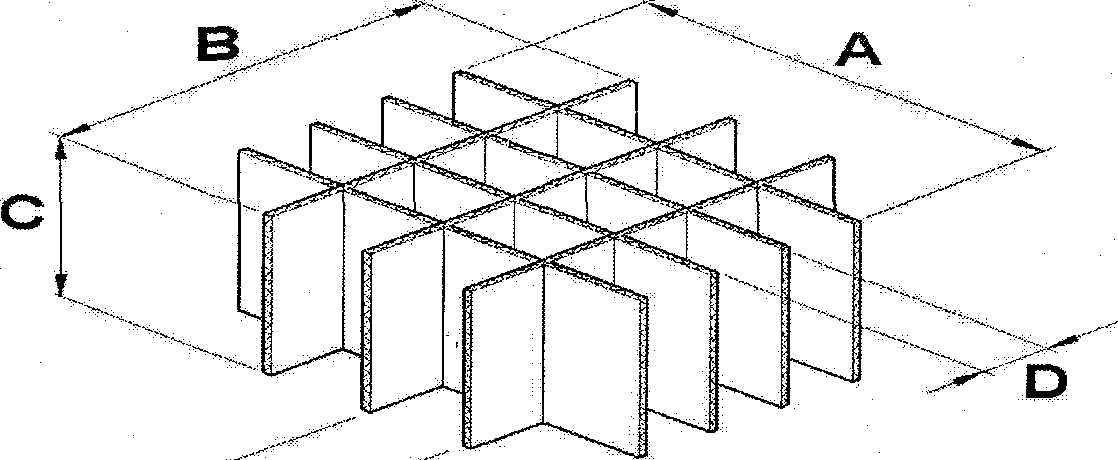

Sheet size	L=160~460mm	L=160~540mm
	W=120~660mm (760mm for 6xN)
	H=65~250mm (80~300mm for 6xN)
Sheet Thickness	1~9mm
Distance between the bottom sheet	40~500mm
Top sheet distance	20~500mm

Product enquiry
