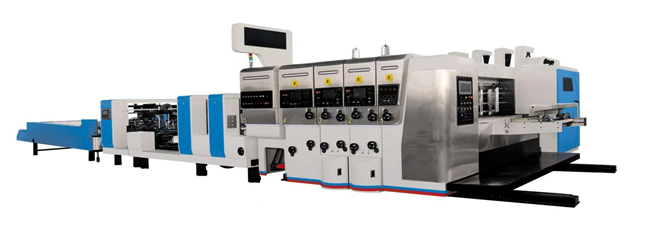

Description:
| Model | FFG-1215 |
| Max.speed | 200 pcs/min |
| Normal production speed | 150 pcs/min |
| Max. sheet size | 1200*1700mm |
| Min. sheet size | 320*450mm |
| Skip feeding size | 1400*1700mm |
| Max. printing size | 1200*1500mm |
| Standard printing plate thickness | 7.2mm |
| Sheet thickness | 1-12mm |
| Printing accuracy | ±0.5mm |
| Diecutting accuracy | ±1.0mm |
Box Data (Option Lock Bottom Fuction)
|
Straight line |
Folding |
|
|
|
L |
800mm-125mm |
|
W |
1450mm-440mm |
|
|
H |
715mm-210mm |
|
|
Flatbox |
Folding |
|
|
L |
500mm-125mm |
|
W |
1350mm-440mm |
|
|
H |
675mm-210mm |
|
Feeding Unit
1.Machine clutch
The electric control machine is equipped with a clutch and alarm bell that continuously rings during operation to ensure the safety of the personnel.
(2) The transmission shaft is equipped with a friction clutch to prevent accidental operation that could damage the machine.
(3) Air pressure interlock device.
(4) Host machine electrical start protection device. (The host cannot start and operate when the machine is not secured.)
2.Non Crushing Lead Edge Feeding System
(1) Air suction assists in paper feeding, with a 11KW frequency-controlled fan. The fan's airflow can be adjusted according to the bending conditions of the cardboard, ensuring smooth paper supply. The lifting and lowering of the paper are driven by cylinders, enabling rapid and labor-saving operations.
(2) Equipped with non crush lead edge paper feed system, it features simple operation and high precision. The extension length is adjustable, offering strong production adaptability. The accelerated transmission is smoother, making it suitable for conveying warped or thin cardboard with noticeable effectiveness.
(3) The side baffle is electrically adjustable, while the front baffle's upper and lower gap positions are manually adjustable.
(4) Sheet feeding device (can be configured for continuous or intermittent feeding as needed).
(5) PLC control, color HMI, menu storage, plate correction, printing speed, quantity, time, and various operational functions
3.Automatic Zeroing Device
(1) The paper feeding unit, printing unit, and die-cutting unit automatically reset to zero in electric mode.
(2) For standard cartons, an automatic zeroing device is used. Printing two test sheets allows adjustment to the correct position, minimizing cardboard waste.
Printing Unit (Vacuum Suction Transfer)
1 Printing roller (plate roller)
(1) The outer diameter is 396mm (including version).
(2) High quality steel surface grinding, axial reference scale, hard chrome plating.
(3) Perform balance correction, balance operation, and adapt to high-speed operation.
(4) Ratchet fixed rolling plate shaft with hanging plate groove, suitable for quick plate replacement and easy and fast installation.
(5) Full version hanging plate slot, applicable to 10mm hanging Flat noodles.
(6) Loading and unloading printing plates, electrically controlled forward and reverse rotation with foot switch.
(7) The maximum movement of the printing roller shaft is 8mm
2.Vacuum adsorption transfer
3. Anilox roller rubber roller ink mixing system
(1) Ceramic anilox roller: outer diameter 198mm.
(2) Perform balance correction to ensure smooth operation.
(3) The number of mesh roller lines is selected as 220/250/280/line/inch.
(4) Cooperate with the automatic pressure lifting device of the paper feeding system. (During paper feeding, the anilox roller descends and comes into contact with the printing plate. When stopping paper feeding, the mesh roller rises and separates from the printing plate.)
(5) Anilox roller with wedge type overrunning clutch, convenient and fast for ink mixing and washing.
(6) The outer diameter of the rubber roller is 176mm
(7) Wrap wear-resistant rubber on the surface of the steel pipe and perform balance correction.
(8) Rubber with high special grinding and good ink transfer effect. Quick gap fine adjustment self-locking device ensures even ink application. Uniform ink system with good ink transfer effect and extended roller life
4.Phase adjustment mechanism
(1) Planetary gear structure.
(2) The printing phase is controlled by PLC, touch screen, and electric digital 360 ° adjustment. (Both operation and stop can be adjusted), and can be used for order storage.
(3) Horizontal position adjustment distance 8mm
(4) Automatic reset system after cleaning the printing plate during the printing process
5.Ink cycle
(1) Pneumatic diaphragm pump, stable ink supply, easy operation and maintenance.
(2) Ink filter screen, filters impurities.
6.Printing phase fixing device
When the machine is separated or the phase is adjusted, the brake mechanism restricts the rotation of the machine and maintains the fixed point of the original gear position.
Die cutting Unit
(1) 6-axis double pressure line
(2) Rubber pad
(3) Manual adjustment of pressure line
Waste Stripping unit
(1) Single group movable type
(2) Electric adjustment of dial plate
Folding Gluing unit
Alignment
Independently adjustable side gauge, the lower bracket that is not parallel to the wall panel stretches the paper and transports it along a parallel guide device to ensure that the paper is parallel and aligned.
Down glue tank
Two sets of lower paste tubes, one on each side
Easy to disassemble and clean
Folding
This folding upper and lower belt dual drive main transmission system ensures strong conveying power for three-layer and five layer corrugated cardboard boxes.
Buffer section
Patent designed independent buffer section, greatly improving production efficiency and product qualification rate.
Press conveyor
According to the requirements of the product, the pressure can be adjusted. It is specially designed and equipped with a set of special soft belts to assist in evenly pressing and ensuring perfect quality.
