Technical Parameters:
Model | 720 | 920 | 1040 | 1100 | 1300 | 1400 | 1600 | 1700 | 1800 ~ 2500 |
Max. effective cutting size | 750x540mm | 960x700mm | 1080x760mm | 1140x820mm | 1350x960mm | 1420x1020mm | 1640x1270mm | 1760x1250mm | ... |
Max. cutting pressure | 80x10⁴N | 100x10⁴N | 140x10⁴N | 140x10⁴N | 160x10⁴N | 160x10⁴N | 180x10⁴N | 180x10⁴N | ... |
Working Speed | 26r/min | 26r/min | 24r/min | 24r/min | 14~24r/min | 14~24r/min | 12~22r/min | 12~22r/min | ... |
Creasing length | <15m | <25m | <30m | <30m | <35m | <35m | <45m | <45m | ... |
Motor power | 380V, 2.2kw | 380V, 4kw | 380V, 4kw | 380V, 5.5kw | 380V, 7.5kw | 380V, 7.5kw | 380V, 11kw | 380V, 11kw | ... |
Weight | 2000kg | 3300kg | 4500kg | 4800kg | 6800kg | 7200kg | 10200kg | 11000kg | ... |
Overall size | 1350x1050x1450mm | 1800x1350x1530mm | 2220x1450x1600mm | 2240x1500x1730mm | 3020x1800x1800mm | 3100x1820x1830mm | 3540x1900x2000mm | 3640x1900x1940mm | ... |
Functions and Characteristics:

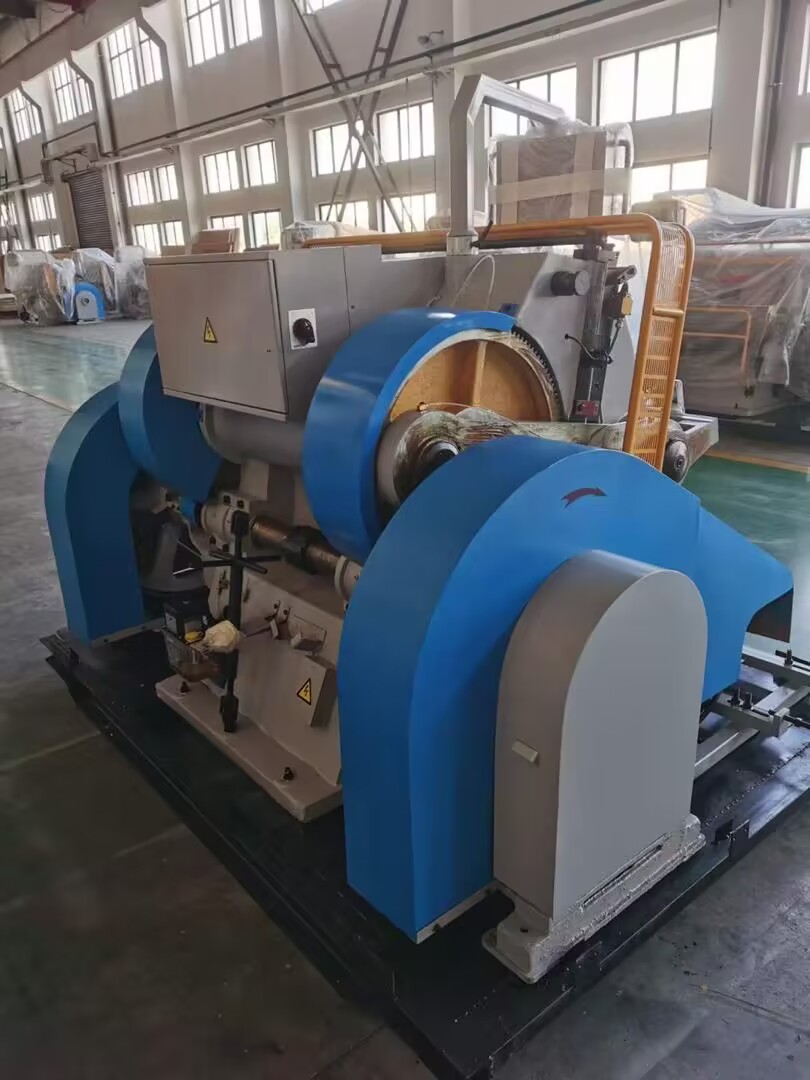

1) Double flywheels framework and duplicate link pole mechanism, it makes the machine has reasonable structure, running steadiness, big pressing power, lower noise, etc.
2) The electro-magnetic clutch make the operation more sensitive, reliable and safe.
3) Mobile edition nip could quickly hold different kinds of cutting mould.
4) Continuous operation and time relay function
5) Automatic lubrication system.
6) Safety device could keep the operator and machine safe.
