Main Function
*Europe and US design concept, fully computerized with touch screen PLC control, easy and safety operation.
*Lead edge feeder suitable for jumbo size corrugated board.
*Whole roll to roll transmission on printing to achieve high quality printing performance.
*Strong performance of creasing and accurate slotting to make standard box easily. *Frequency compensation device to make die cutting box precisely and efficiently.
*Remote maintenance, rapid equipment trouble shooting with global service network to ensure long term stable performance.
Technical Parameters
|
Model |
2236 (2240/2245/2248) |
2536(2540/2545/2548) |
|
Max. speed (pcs/min) |
120 |
100 |
|
Max. sheet size (mm) |
2100x3600 |
2500x3600 |
|
Min. sheet size (mm) |
550x900 |
650x900 |
|
Max. sheet thickness (mm) |
12 |
12 |
|
Max. printing size (mm) |
2080x3600 |
2480x3600 |
|
Min. slotting size (mm) |
330x110x330x110 |
360x110x360x110 |
|
Max. slotting depth (mm) |
750 |
850 |
|
Machine weight (kg) |
Three color: 73000 Four color: 83500 |
Three color: 77000 Four color: 88500 |
|
Machine dimension LxWxH (mm) |
Three color: 19130x6760x3200 Four color: 20050x6760x3200 |
Three color: 20240x6760x3200 Four color: 21270x6760x3200 |
Feeding Unit
*Lead Edge Feeder with strong vacuum transfer for precise and stable feeding.
*Dust removal system with brushes and anti-static device and segmented vacuum sheet cleaner.
*Feeding rolls gap and side guides are motorized and PLC control.
*Main motor is protected from starting up when units are not fully closed and locked.
*Continuous feeding or skip feeding function

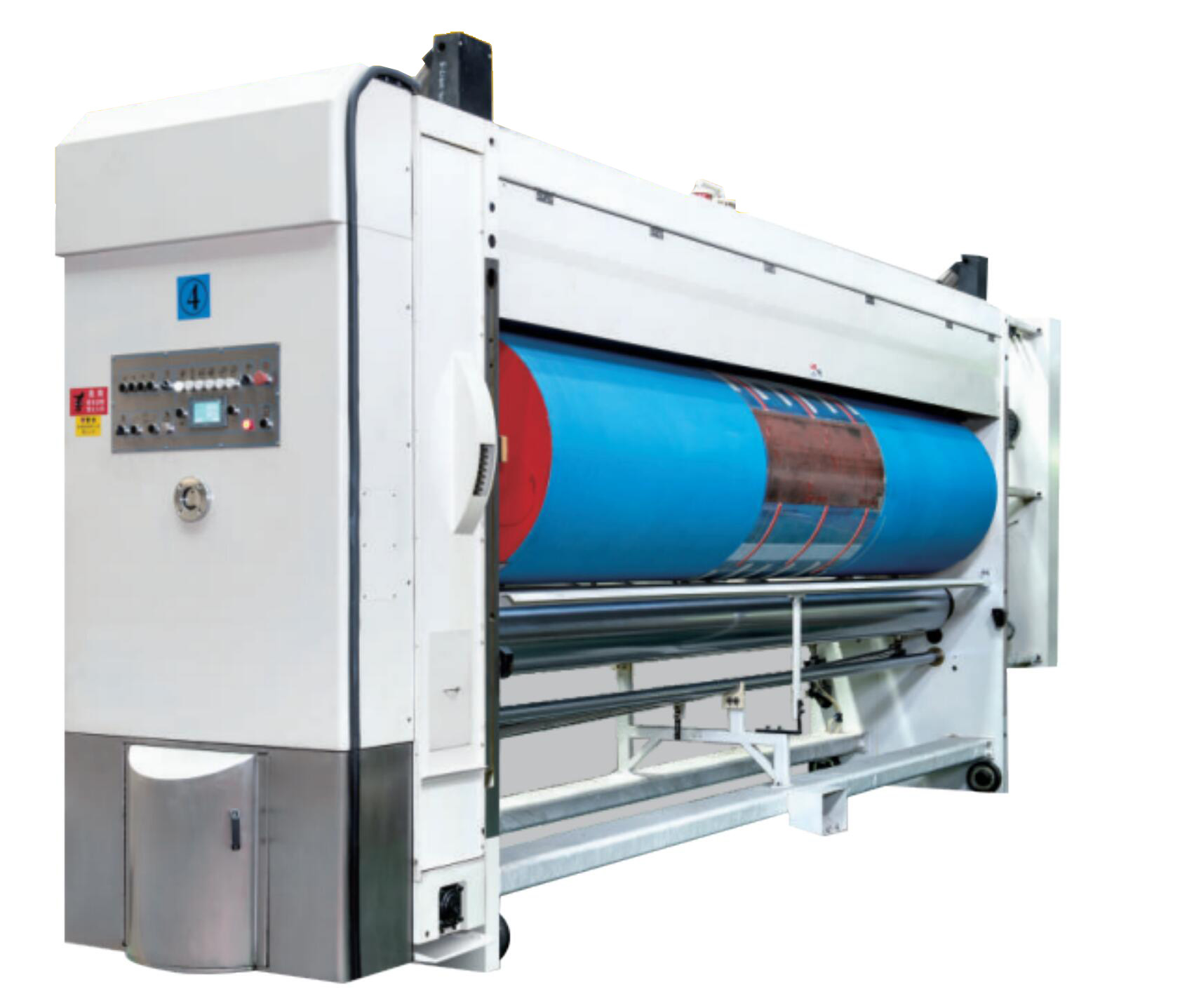

Printing Unit
*Roll to Roll transfer, high adaptability of jumbo board, transfer more precisely, improve chromatical precision.
*Pneumatic clutch is adopted on anilox roller
*Transverse register is digitally controlled by motor and PLC.
*Automatic cleaning function guarantees ink recycle and cleaning more easily and quickly.
*Ink leaking & splashing proof system.
*Automatic resetting after cleaning the printing plate.
*Rubber roller inking system

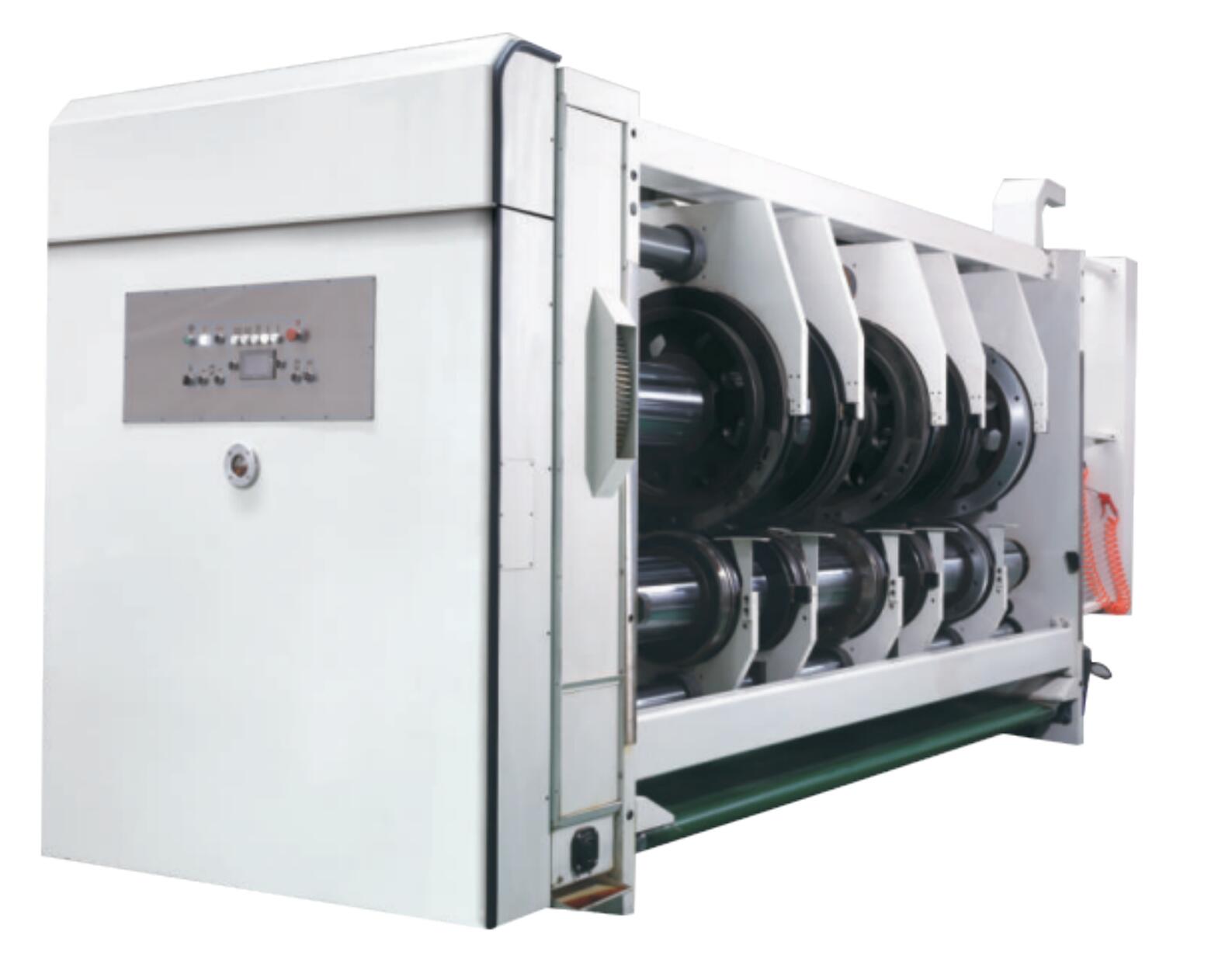

Slotting Unit
*Dual shaft with slotting and creasing.
*An internal gear adjusts the height of the box height and prevents the lubrication oil from spilling or leaking on the paperboard.
*Upper boss and lower boss are coupled to keep knives aligned while moving, which is helpful to prolong service life.
*Slotting register and height of box are digitally controlled by motor and PLC.

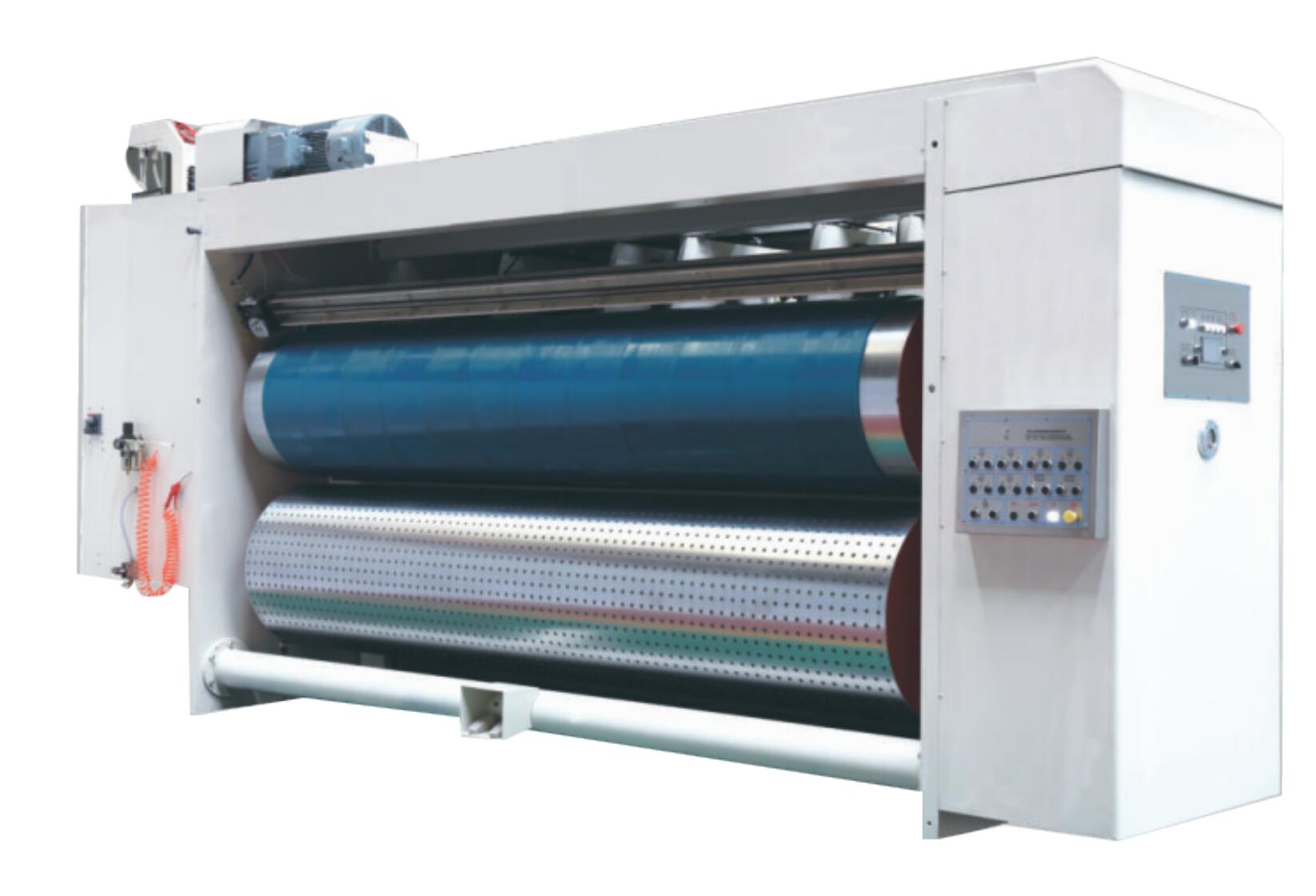

Die-cutting Unit
*Side to Side oscillation of anvil rubber roller.
*Cutting cylinder lateral register is digitally controlled by motor and PLC.
*Anvil rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed.
*The trimming device to keep surface of anvil cover flat and smooth.

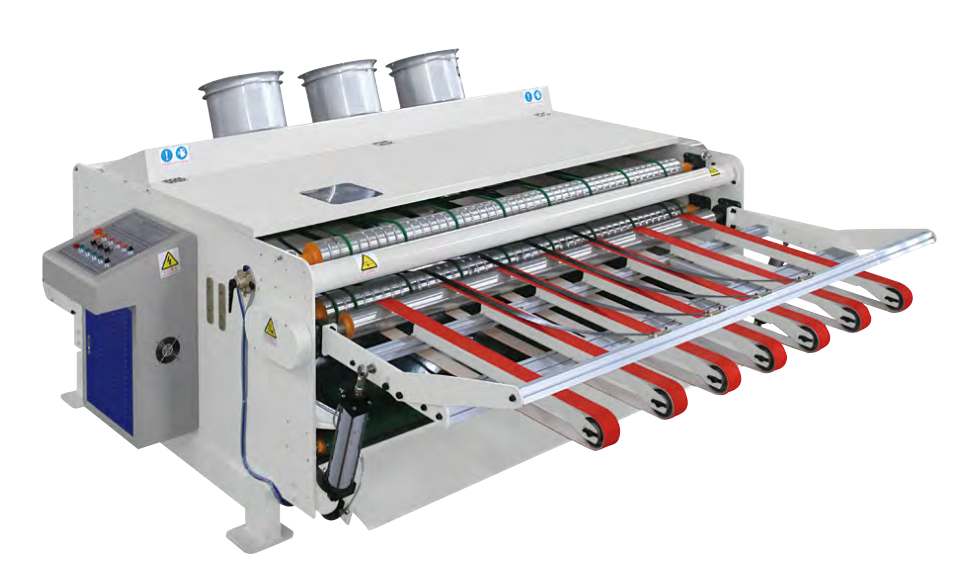

Vibrating Unit
*Adopted pneumatic lifting structure.
*Equipped with Medium Pressure Fan in the front of Vibrator to achieve the perfect waste remove, at the same time, the cardboard can be transmitted smoothly.
* Each vibrating device is driving by independent motor, which can get a better cleaning result through different vibrating frequencies.
*Vibrating belts adopts imported cylindrical high elastic belts to avoid damage of cardboard.
*The cylindrical belts shaft with semicircular groove can easy adjust the belt position to meet the needs of irregular cardboard, to achieve one to two, one to three pieces.
*The back end of Vibrator equipped with Strong Suction fans and Brushes, to remove the scraps from the cardboard during vibrating in order to achieve a perfect cleaning.
*All the motors are independent control, which can be operated separately in accordance with the production demand.

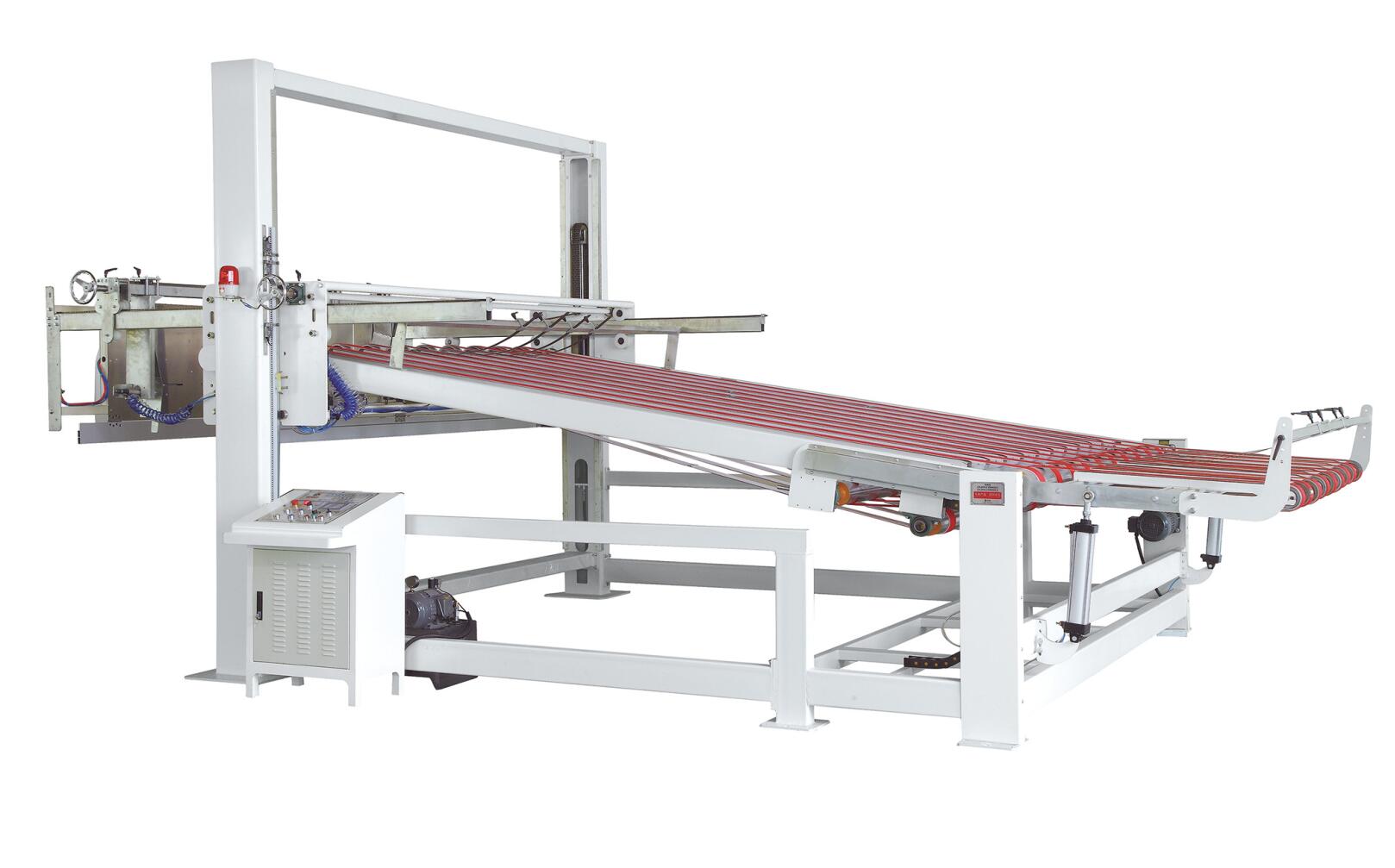

Stacking Unit
*Adopted pneumatic lifting structure, which is reliable and stable.
*And can adapt one to two, one to three pieces.
*According to different requirements can use Automatic or Manual mode, front splicing platform adopts pneumatic lifting structure, which makes more easy for die-cutting nit change mould.
*The front end is equipped with strip pressing mechanism, which makes the cardboard transmit more stable; and the back end is equipped with sun wheel pressing mechanism to make the paperboard fall horizontally.
*The distance of splicing plate can be manual adjusted according to cardboard size.
