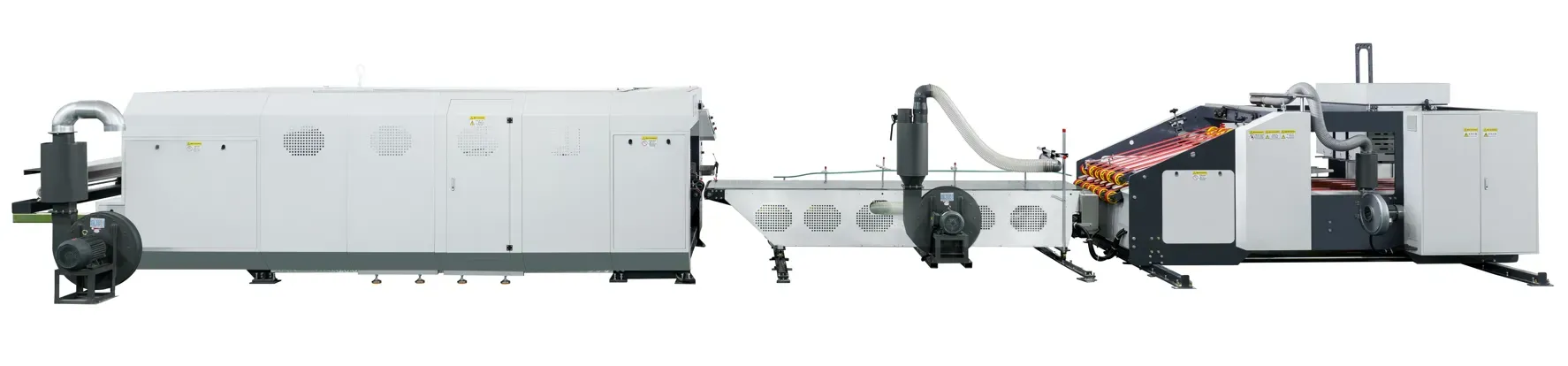

Intelligent High Speed Folder Gluer Stitcher is Order Change in 30 seconds, fastest in the world, the most efficient converting machine for stitching or gluing box.
- One key operation by touch screen or QR code scan system.
- Motion control system ensure stable delivery.
- Full servo drive, more accurate.
- No fish tail, no uneven feet, no scratch on paper surface.
Ensure every corrugated board is perfectly gluing & stitching!

Technical Data:
| Model | 0920FM | 1024FM | 1224FM | 1230FM |
| Max. sheet | 900x2400mm | 1000x2400mm | 1200x2400mm | 1200x2900mm |
| Min. sheet | 300x750mm | 300x750mm | 300x750mm | 300x750mm |
| 1st stitching | 40-300mm | 40-300mm | 40-300mm | 40-300mm |
| Max. box height | 600mm | 600mm | 800mm | 800mm |
| Min. box height | 120mm | 125mm | 130mm | 130mm |
| Glue or stitch tab | 32-45mm | 32-45mm | 32-45mm | 32-45mm |
| Stitching gap | 45-110mm | 45-110mm | 45-110mm | 45-110mm |
| Stitching Q'ty | 2-15 | 2-15 | 2-15 | 2-20 |
| Stitching speed | 1000 | 1000 | 1000 | 1000 |
