Description:
- No limited on box height, No limited on Sheet Length.
- There is no need for a skilled operator, and a novice can take up his post.
- It can reduce the harm to the intelligent workers.
- Servo motor, accurate movement.
- Independent trimming, single piece, double pieces are automatic adjustment, no need remove & reinstall slotting knives.
- Pre-creasing, creasing and slotting are automatically lift, quick set up of 3ply & 5ply corrugated board.
- No need to adjustable positioning baffle.
- The host can adjust the next order without stop the machine.
- 600 order memory, easy repeat order.
- Digital control, touch screen or QR code scan order data, machine will automatically finish setting and prepare next order.
- The whole machine uses brand motors (Schneider servo motor, drive, PLC) with guaranteed quality.
- Patent development of operating system, more personalized and more convenient.

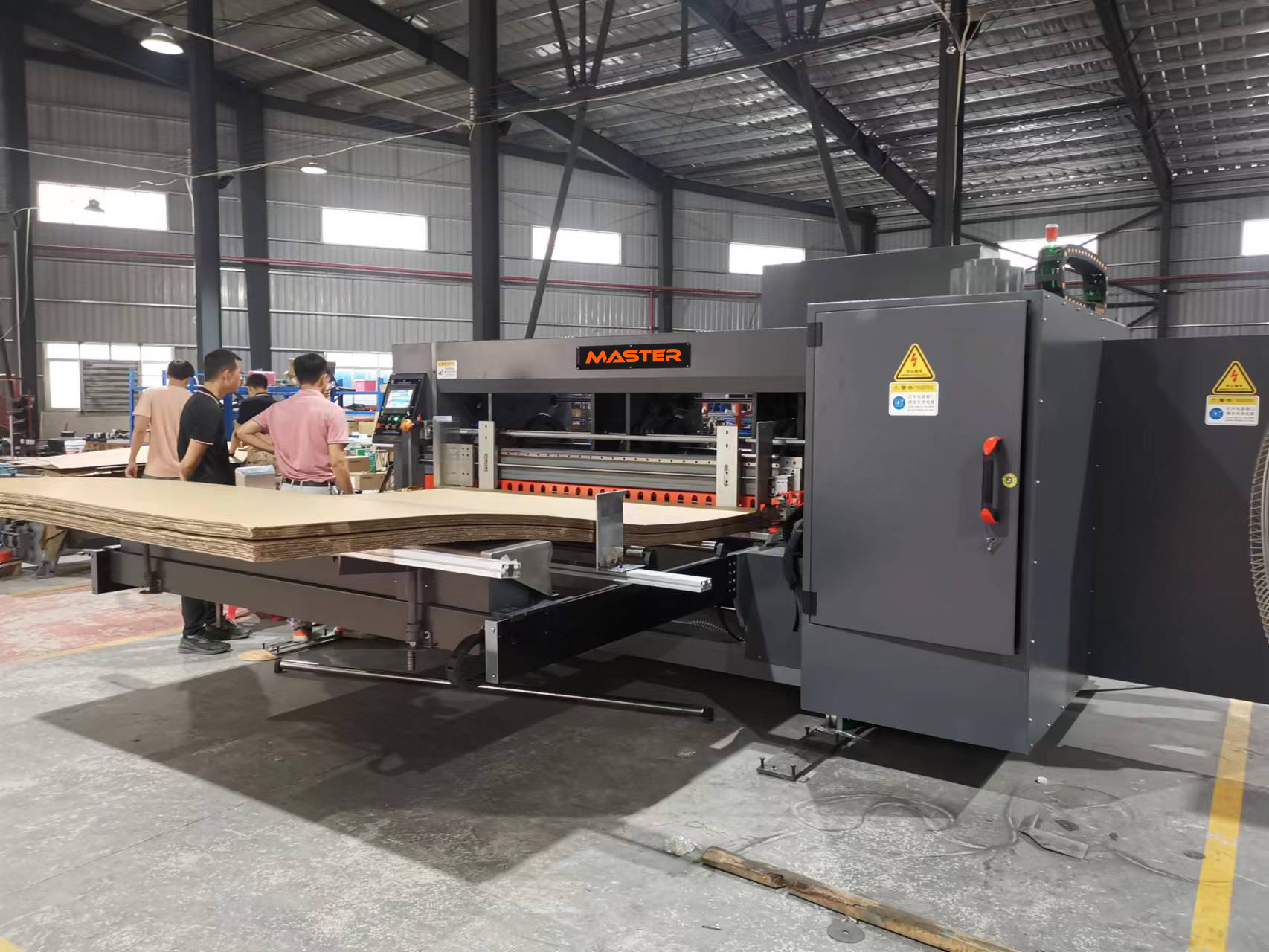

Lead Edge Feeding System, Servo Drive, Intelligent Operation:
|
Item |
Specification |
|
Model |
1628 |
|
Working speed |
120m/min |
|
Minimum feed length |
280mm |
|
Minimum width (1st and 2nd knife) |
210mm |
|
Minimum width (2nd and 3rd knife) |
60mm |
|
Slotting & creasing positioning accuracy |
±1mm |
|
Knife specification |
200mm + 100mm + 100mm |
|
Suitable board thickness |
2-12mm |
|
Main motor power |
5.5kw |
|
Total power |
25kw |
|
Total weight |
6110kg |
|
Machine overall size |
(length * width * height) 3000 * 4300 * 1800mm |
|
Touch screen |
Touch screen operation, simple interface, easy to operate. |
|
Creasing performance |
Tip to flat, up and down creasing symchronous |
|
Double screw rod |
Adopts ball screw rod design, which is characterized by precision, stability, high speed, etc |
|
Servo drive motor (feeder) |
Innovance servo motor 1.8kw, *3 |
|
Servo drive motor (side baffle) |
Schneider servo motor 400w, *2 |
|
Vacuum suction fan |
Popular 7.5kw |
|
Cutter seat servo drive motor |
Schneider servo motor 750w, *4 |
|
Box height, Phase servo drive motor |
Schneider servo motor 750w, *1 |
|
Trimming servo drive motor |
Schneider servo motor 400w, *1 |
|
Main drive frequency converter |
Suqu |
|
Low voltage electrical apparatus |
Schneider series |
|
Servo motor. Servo drive |
Schneider |
|
PLC controller |
Schneider |
|
Touch screen |
Weinview |
|
Bearing |
NSK, Harbin, C&U |
