Our CorrMaster is based on Germany IPC control, Industry 4.0 design, with EtherCAT communication and full servo drive to make the production smart & more stable! The AI system will learn all those orders data and improve the production efficiency automatically. Compared to tranditional way which we must need skilled operator to run the good performance board.
Cassette type Single Facer with the Soft Touch technology & Line Pressure Control (named LPC) & synchronized gluing.
Technical Data:
Size (mm) | 2500 (MasterLine) | 2500 (MasterLine) |
Production speed (m/min) | 350 | 400 |
Flute type | N,G,F,E,B,C,A | |
Monthy output (m²) |
15.8 million |
18 million |
Machine Layout (m) (L*W*H) | 100~115x10x5 | 100~115x10x5 |
Suggest Factory Land (m²) | >20000 | >20000 |
Steam consumption | 4000kg/h(1.1-1.2Mpa) | |
Power supply | ~450KW ,~380Vac, 50HZ, 3 phases 4 wires |

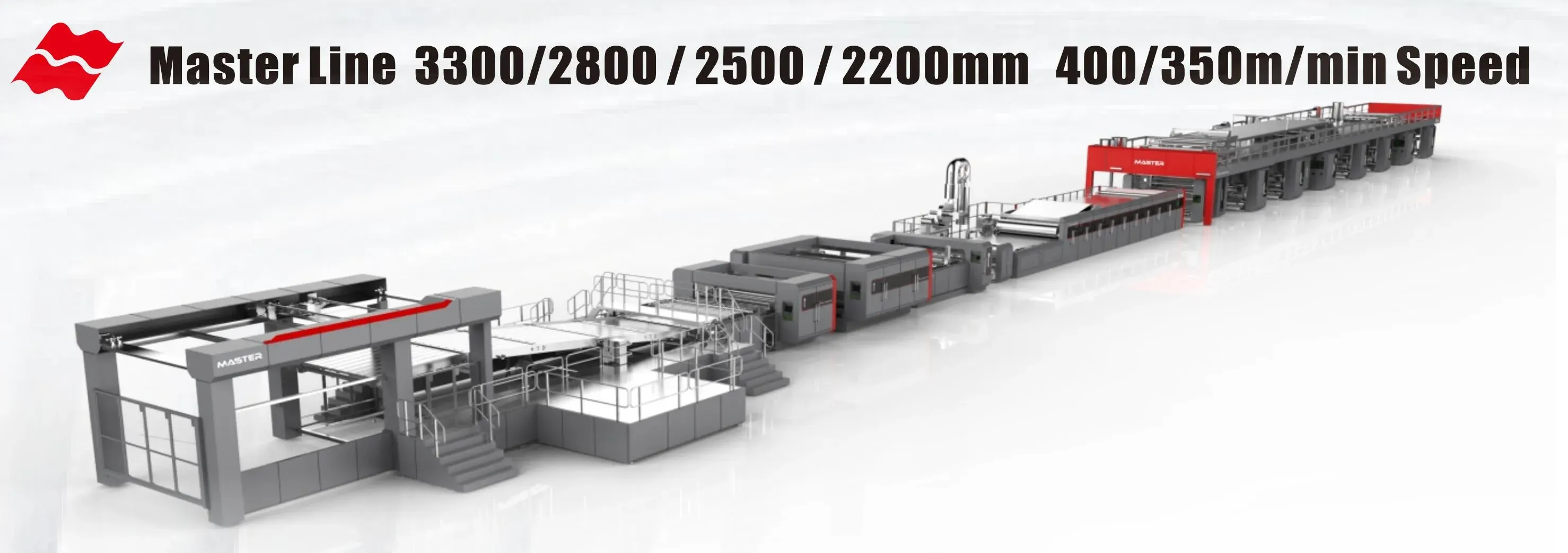

5ply (5 layers) Corrugated Board Production Line / Double Wall Corrugated Board Production Line:
Corrugated Board Production Line at Customer Factory:

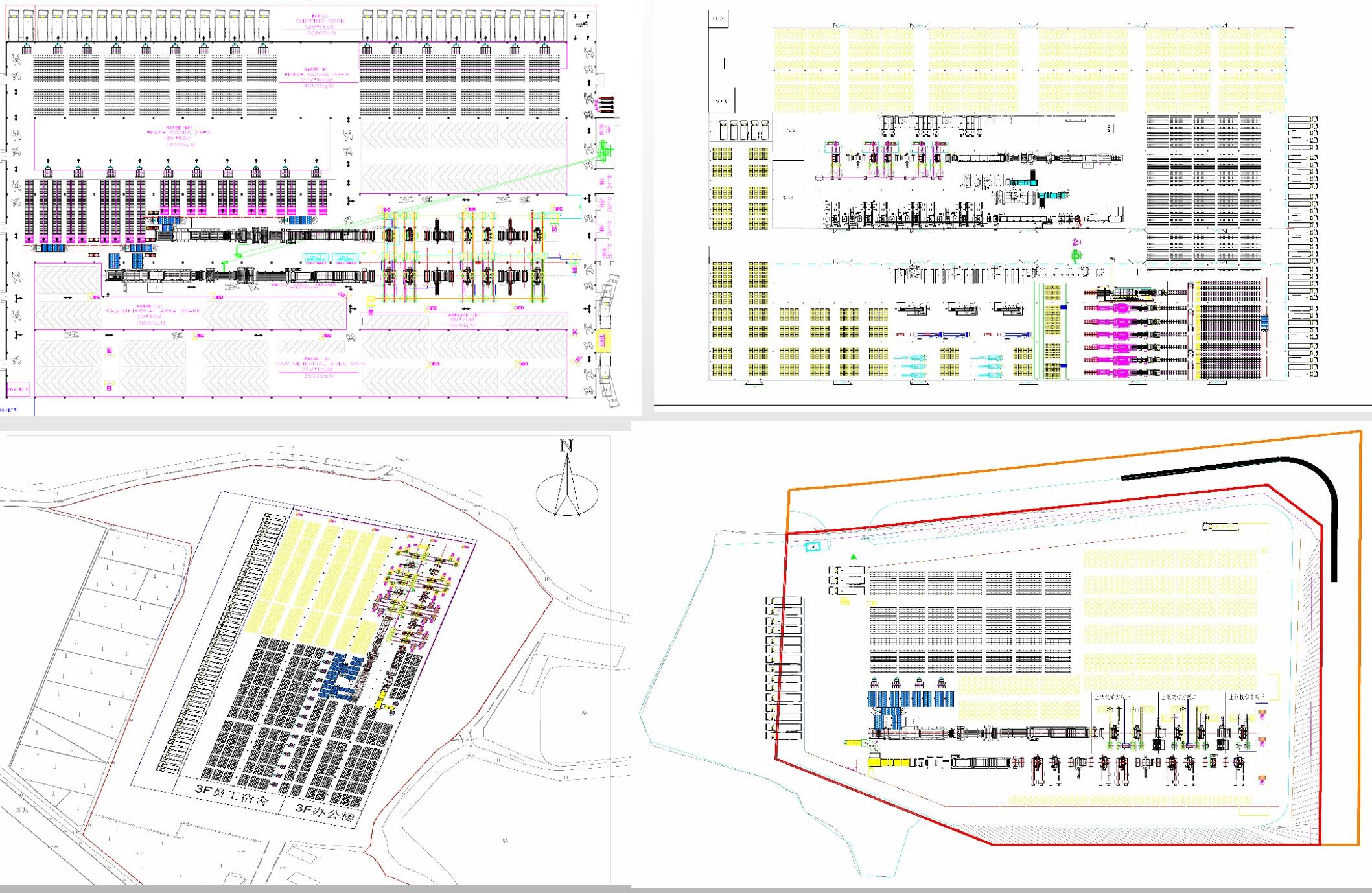

Corrugated Box Factory Layout:
