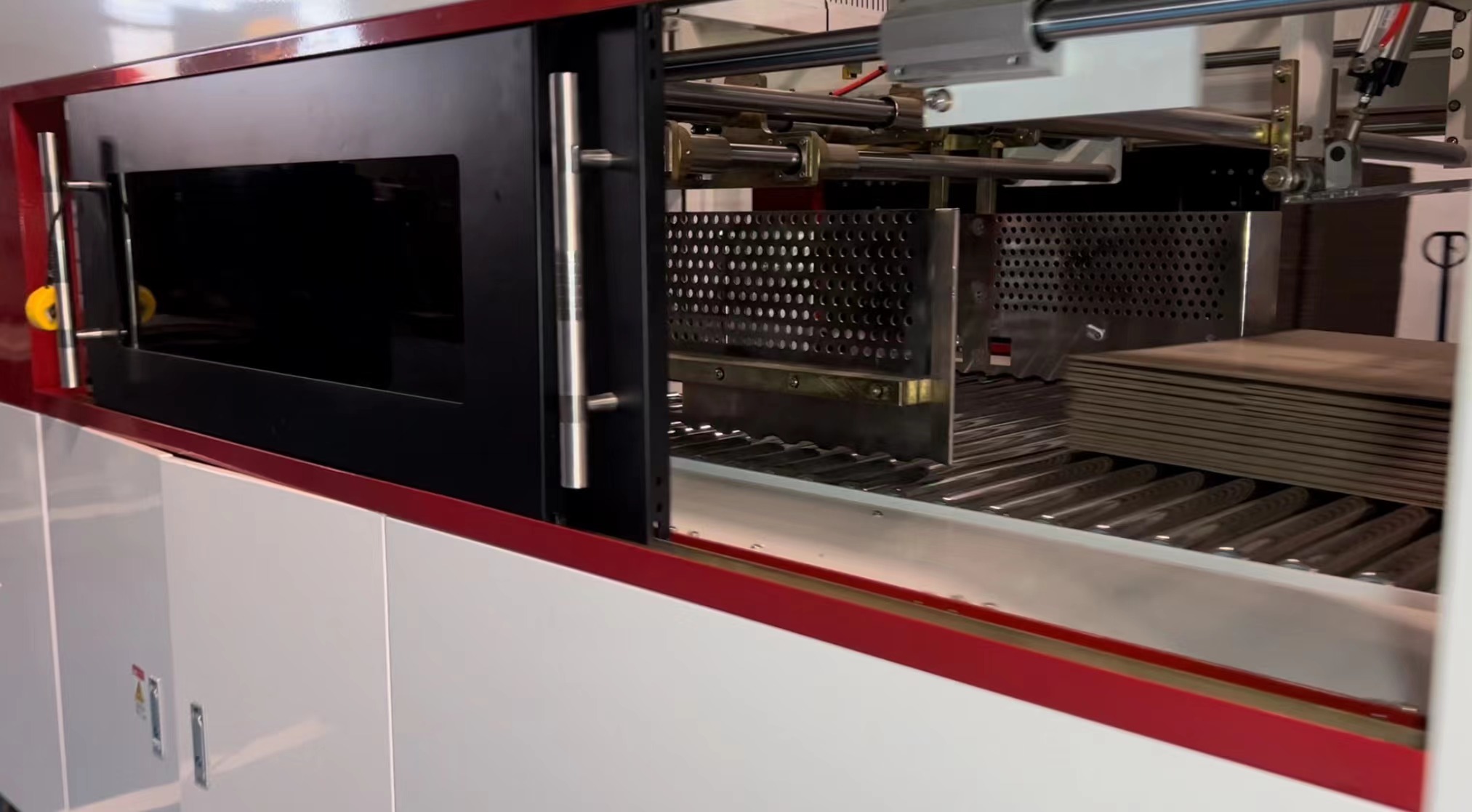

Description:
- Core technology from Germany;
- The world's most advanced high-speed automatic threading technology;
- The world's fastest automatic belt replacement technology;
- The world's fastest packing speed packer (of the same type);
- It can automatically detect and eject the residual tape;
- When the machine is idling, the idling belt loop will pop up automatically;
- 24 volt constant temperature welding system; DC motor, brushless motor technology;

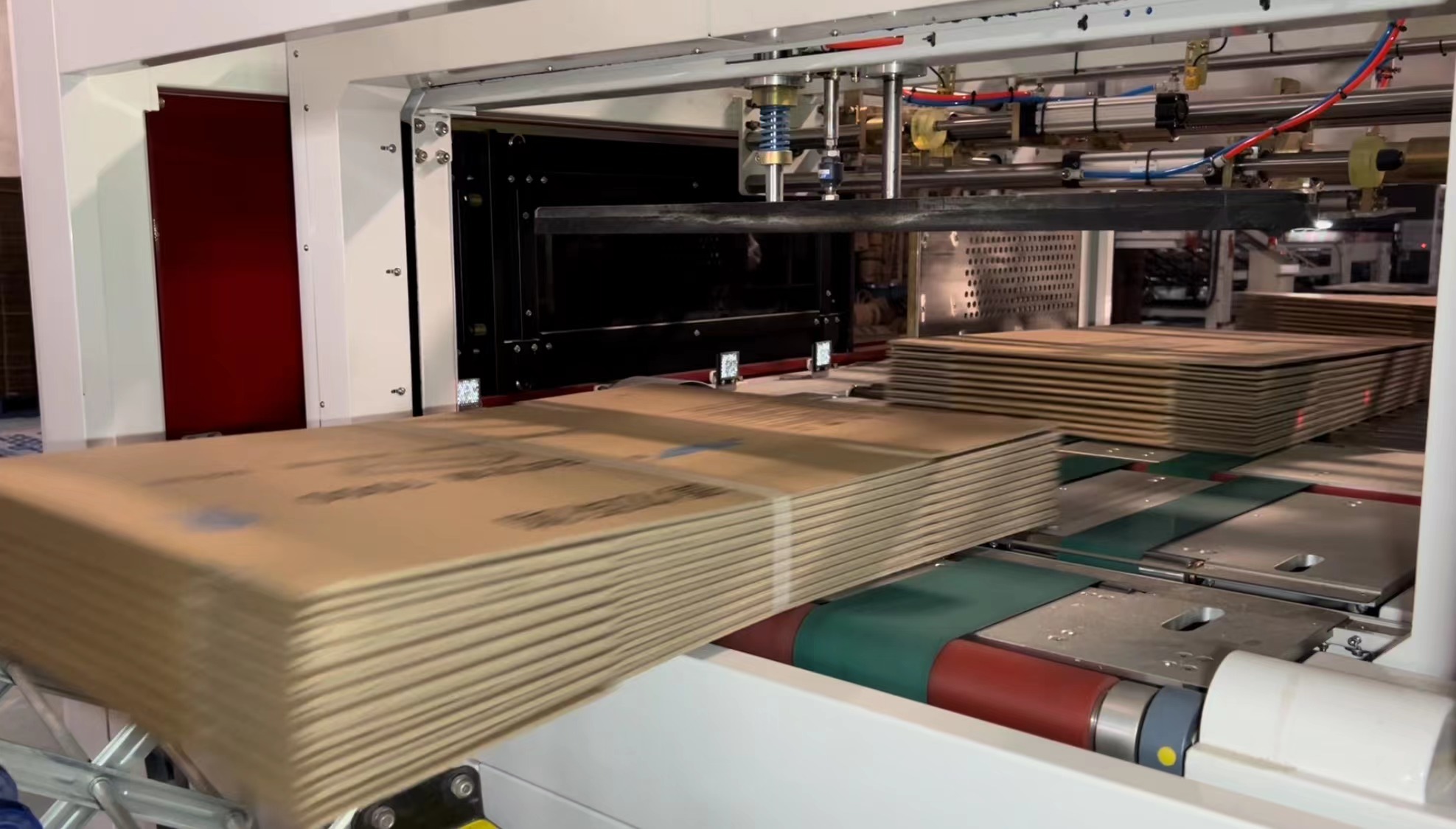

- PLC control system; The paper box stack is conveyed by belt conveyor, and the conveying speed is adjustable;
- The 7-inch main touch screen control system can automatically warn and prompt the fault position;
- The packing force can be adjusted; You can select single channel or double channel;
- The belt conveyor worktable can better protect the carton stack and can be combined with multiple production lines;
- It can quickly set the work order, packaging position, packaging tension, etc.
- Machine color: red & white.
- The maximum speed of the machine can reach 40 packets or more per minute.
Header Description:
- Thermal welding system with electronic temperature control device;
- All mechanical parts are solid, wear-resistant and easy to maintain;
- The packing and welding points are very firm; Unique cam device;
- Proximity switch (German EFM brand)
All proximity switches of the packer are German brand
- Pneumatic device (imported brand)
6 bar compressed air, 1/4 "quick action clutch; air consumption 25 cycles / min: ca. 130 L / min
- Belt conveyor (motor imported from Japan)
Belt conveying speed can be adjusted
Automatic detection induction switch (imported from Japan)
It can automatically sense carton packaging, and the packaging position is adjustable
PLC control system (Japanese Mitsubishi brand)
Can expand the single packaging function to multi-function
Touch screen control system (imported brand)
Multi function selection control (single channel packaging or dual channel packaging can be selected. Manual packaging or full-automatic packaging can be selected. Pneumatic switch can be selected.
Technical data:
- Suitable carton size: Width 300~1150mm (while into square device width), Length 300~1150mm, Height: 120~300mm.
- Can choose 3 sides (front, left right) and 4 sides (front, back, left, right) square.
- The stroke of the cylinder at the stop bar is 300mm. When the stop bar extends, it is 300mm higher than the conveying line.
- Conveyor belt speed: 15m~25m per min, adjustable.
- loading weight: 15kg~20kg.
- Time beat per minute: 18 to 22 times on average according to different carton sizes.
- Equipment installation length 2700 mm
- Table height 820mm – 930 mm (adjustable)
- Packing speed (without pressing plate):
- A single packing can reach 18-22 bales per minute (depending on the size of the carton), when the belt conveying speed is 0.6 m / s. If 20 carton per batch, it can bale 25000 pcs of carton per hour or more.
- Double strip packing can reach 10-14 bales / min (depending on the size of the carton), when the belt conveying speed is 0.6 m / s. If 20 carton per batch, it can bale 13000 pcs of carton per hour or more.
Materials used:
- Standard PP packing belt, width 5mm
- Packing coil: core diameter: 200mm; Core width: 190mm
Power Supply
- Voltage: 220 V, 50 Hz, 3 pH, 16 A CEE – plug off: approx. 2.5 KVA
Pneumatic device
- 6 bar compressed air, 1/4 "quick action clutch; air consumption 25 cycles / min: ca. 130 L / min
Belt conveyor
- Belt conveying speed can be adjusted
