Main Technical:
| Item | 920 | 924 | 1224 | 1228 | 1628 | 1632 | |
| Maximum equipment speed (sheet/min) | 300 | 280 | 250 | 230 | 180 | 160 | |
| Maximum feed size (mm) | 900×2000 | 900×2500 | 1200×2500 | 1200×2800 | 1600×2800 | 1600×3200 | |
| Minimum feed size (mm) | 300×600 | 300×600 | 350×600 | 350×600 | 450×600 | 450×600 | |
| Sheet feeding (mm) | 1200×2000 | 1200×2500 | 1500×2500 | 1500×2800 | 2000×2800 | 2000×3200 | |
| Printing area (mm) | 900×1960 | 900×2460 | 1200×2460 | 1200×2760 | 1600×2760 | 1600×3160 | |
| Standard printing thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
|
Minimum
Slotting
Clearance
|
Forward knife（mm） |
130×130×130 ×130 |
130×130×130 ×130 |
130×130×130 ×130 |
130×130×130 ×130 |
130×130×130 ×130 |
130×130×130 ×130 |
| Backward knife（mm） |
230×65×230 ×65 |
230×65×230 ×65 |
230×65×230 ×65 |
230×65×230 ×65 |
260×70×260 ×70 |
260×70×260 ×70 |
|
| Maximum Slotting Depth (mm) | 260 | 260 | 300 | 300 | 400 | 400 | |

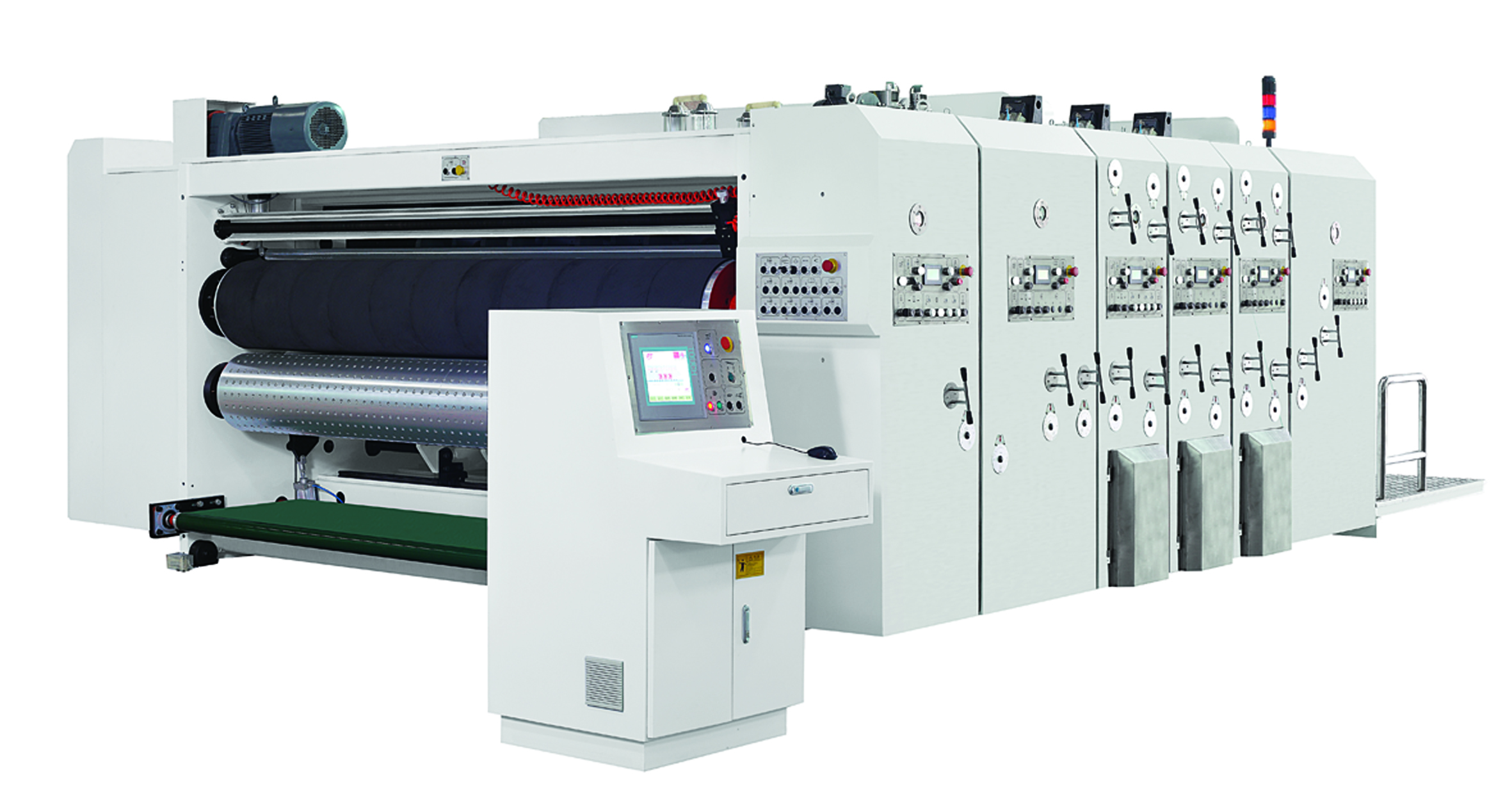

Desctriton of Flexo Printer:
Feeding Section:
- Precise continues or skip feeding.
- Frequency adjust vacuum & Pressure, suitable for different size or warp sheet.

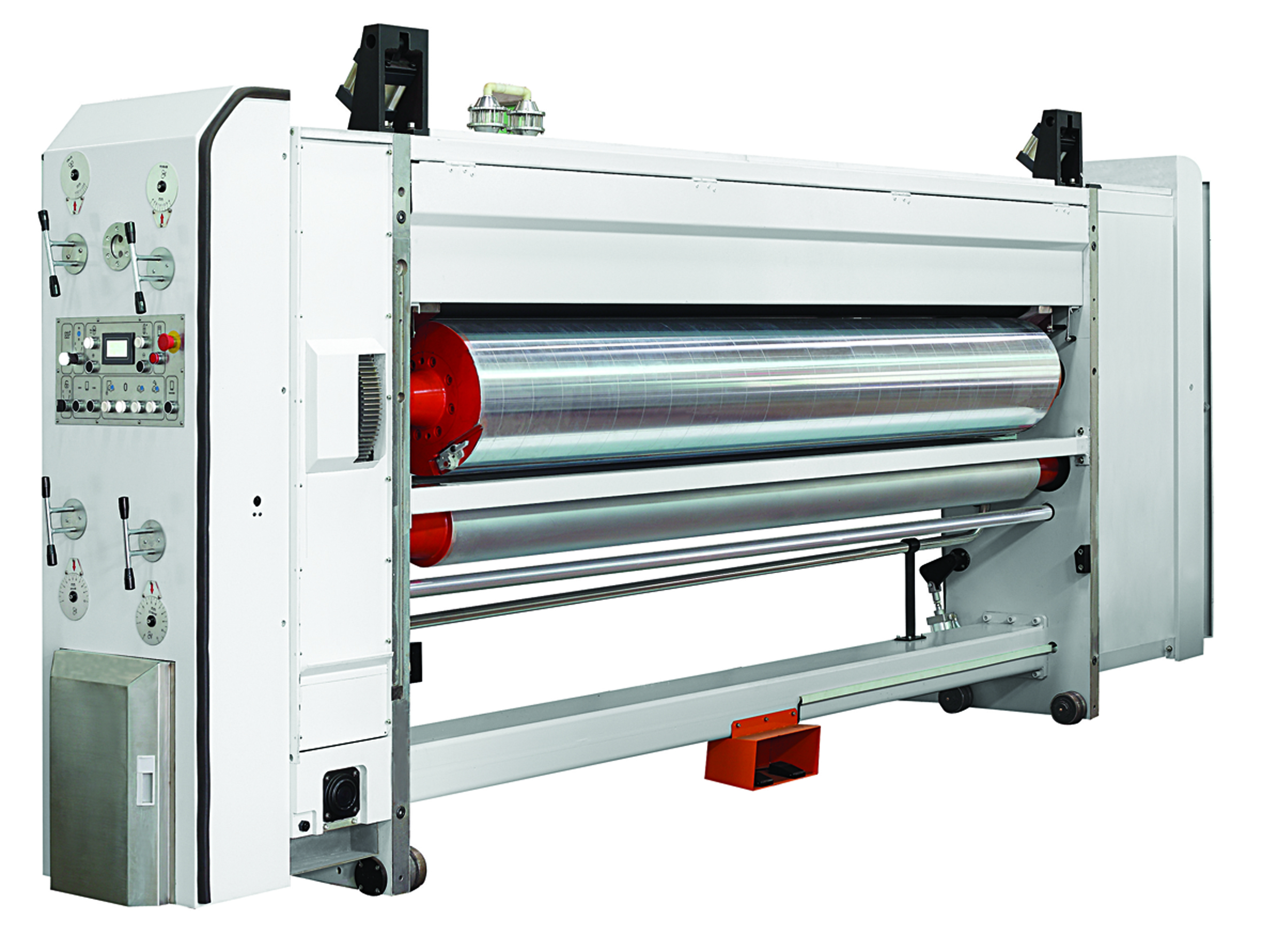

Printing Unit:
- Roll to roll transmission
- Quick setting, easy for multi-color printing & repeat order.
- Quick lock mounting device with center line
- On key for return printing plate hanging position

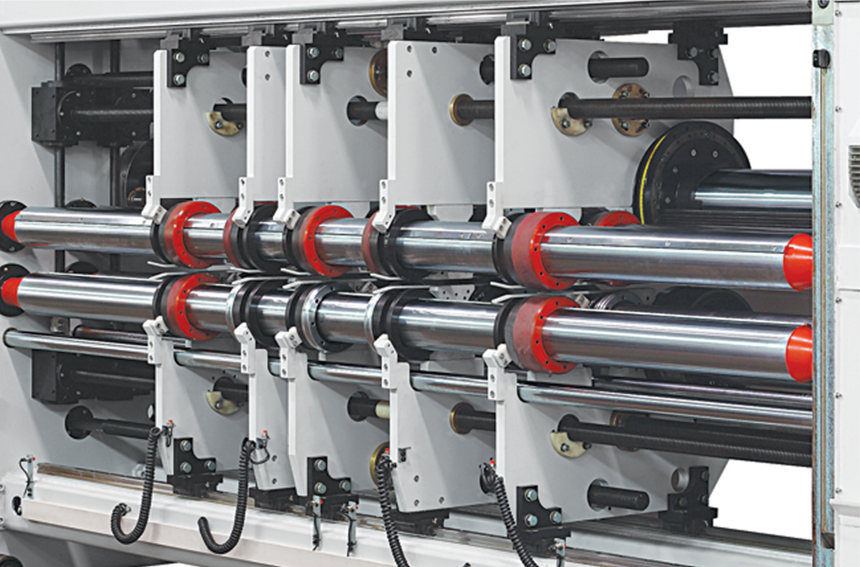

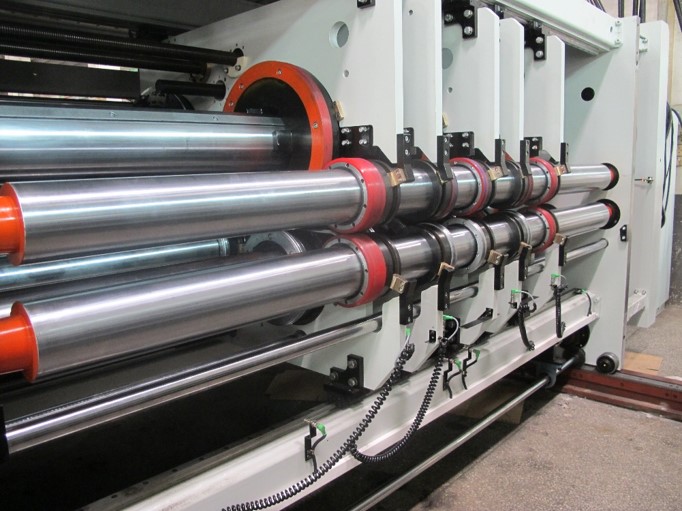

Slotting Unit：
- Automatic controlled, display on screen, auto reset function
- Linkage movement of up & down cutter seats, aligning & synchronized pre-creaser & creaser
- Highly precise linear guide system with lead screw
- Sensor monitor the clearance to protect the machine

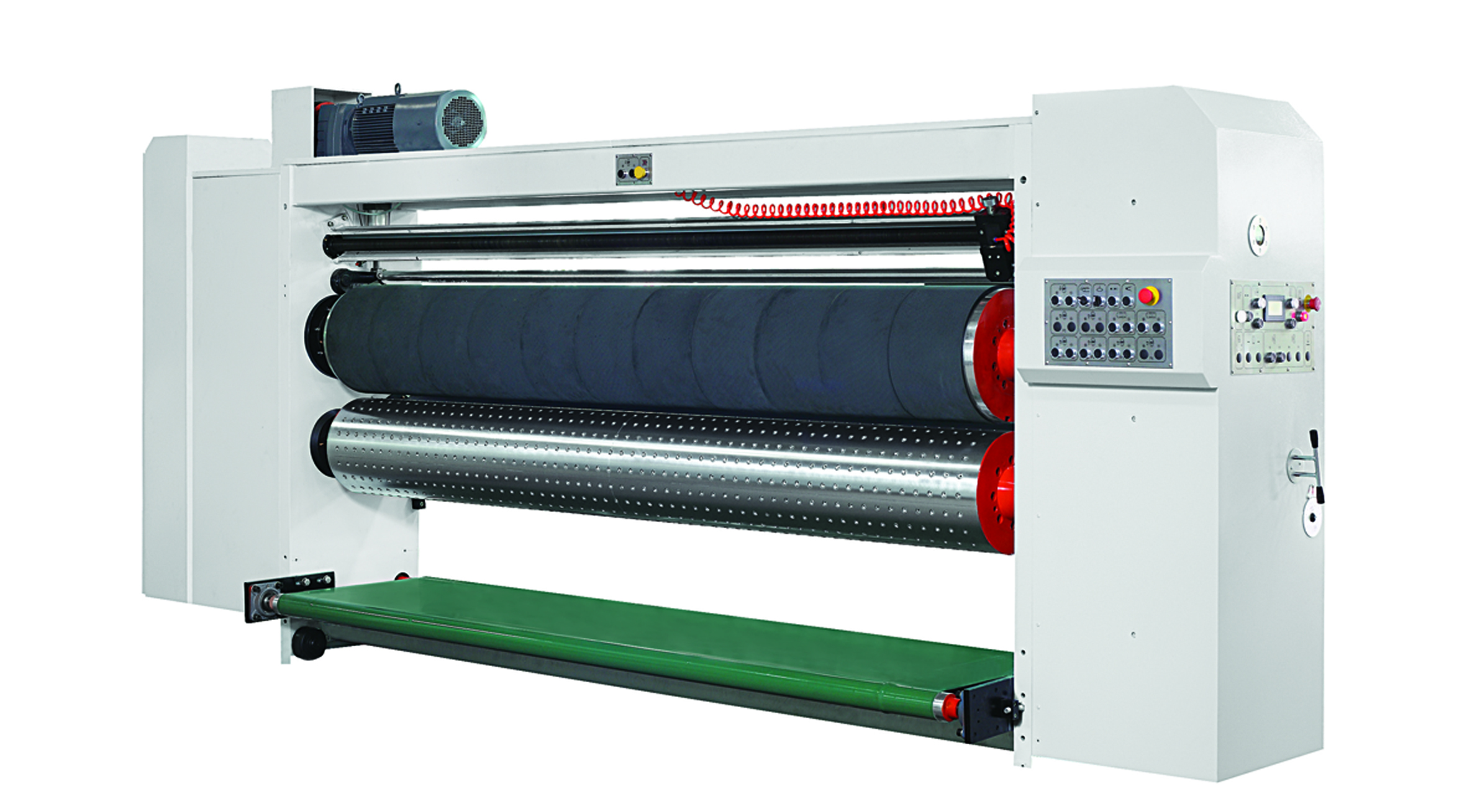

Diecutting Section:
- The trimming device keep the anvil drum surface flat & smooth.
- Independent motor to speed compensation of anvil drum,keep carton and die-cutting plate identical, the compensation range is ±3mm.
- Anvil drum rotate & axially move ±50mm.
- The US’ CUE anvil drum, durable with quick change design.
Vibrator Stacker (optional Counting type stacker)：
- It’s available for regular & irregular carton
- Electrical & Motorized control
- Receiving speed synchronized & individually adjusted
- Perfect vibrating to clean most of waste
- Perfectly collect sheet, 1.7m stacking height.
