Flatbed Diecutter Pre Feeder | Bottom Printer Pre Feeder

Home / Flatbed Diecutter Pre Feeder | Bottom Printer Pre Loader

Flatbed Diecutter Pre Feeder | Bottom Printer Pre Loader

Name: Flatbed Diecutter Pre Feeder | Bottom Printer Pre Loader
Brand: Master
SKU: set
Rating: 0 (0 reviews)

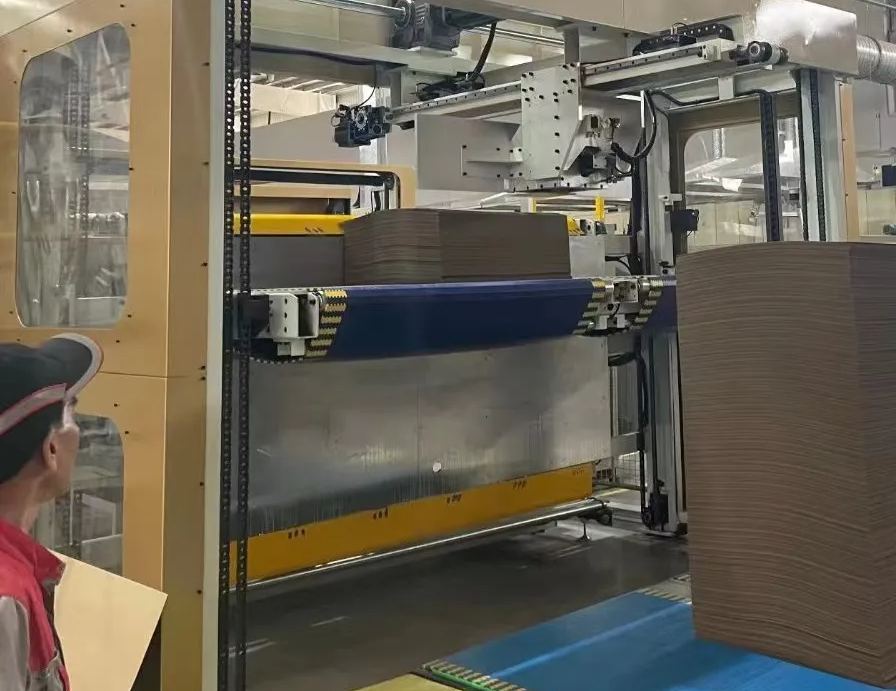

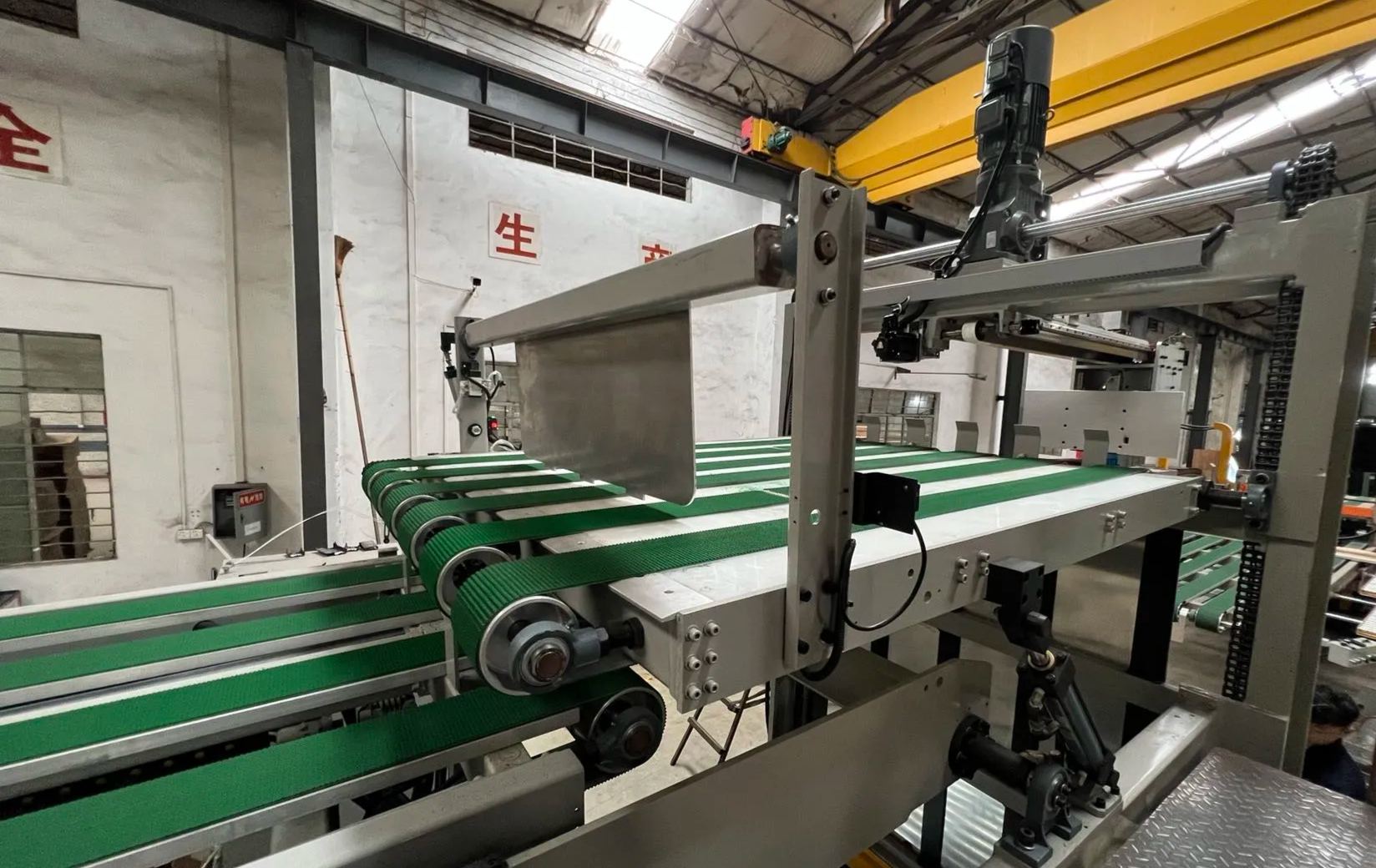

Pre feeder is used for loading the corrugated board into the automatic flatbed diecutter machine, and bottom printer slotter diecutter machine, to improve production efficiency of corrugated box factory.

Technical Data:

Model	1216	1321	1425
Speed (pcs/min)	7000 pcs/hour	700 pcs/hour	12000 pcs/hour
Max. Sheet size (mm)	1200 x 1650	1300 x 2100	1400x2500
Max. Stacking Weight (kg)	2000	2000	2000
Max.Stacking Pile Height (mm)	1800	1800	1800
Lifting Type	Motorized by chain	Motorized by chain	Motorized by chain
Lifting Power of Horizontal conveyor	Motor driving	Motor driving	Motor driving
Machine Size (mm)	11500 x 2200 x 3400	11500 x 2800 x 3400	11500 x 3200 x 3400
Total Power (kw)	15	15	18
Machine Weight (kg)	4000	4500	5000
