Model | 60T | 80T | 100T |
Production Capacity (ton/hr) | 2~4 | 3~4 | 5~6 |
Bale Size (mm) | L(Free) x 750 x 750 | L(Free) x 750 x 750 | L(Free) x 1000 x 750 |
Input Size (mm) | 1540 x 700 x 750 | 1540 x 700 x 750 | 1740 x 1050 x 750 |
Bale Weight (kg) | 300~330 | 340~370 | 400~500 |
Main Motor (kw) | 15 | 18.5 | 22 |
No. of Binding Wire (pair) | 3 | 3 | 3 |
Machine Size (mm) | 7286 x 9281 x 3400 | 7286 x 9283 x 3400 | 11547 x 8083 x 3800 |
Machine Weigth (ton) | 13 | 14 | 16 |
Highlights of machine control system---
The packer is equipped with an intelligent monitoring system. When the hydraulic system is started, the system can automatically distinguish according to the quantity of waste materials and carry out automatic compression and packing, which is energy-saving and efficient;

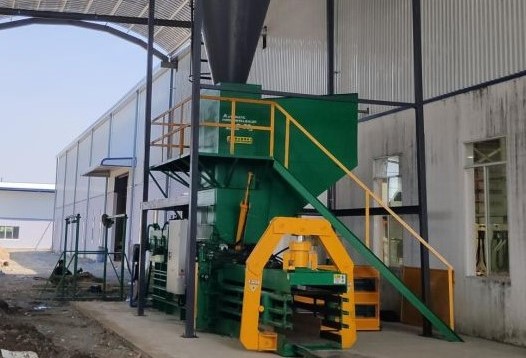

Note: The intelligent full-automatic waste paper packer in this document adopts built-in world leading technology Mitsubishi PLC control programming system (accessories include Japan, Taiwan and other brand parts). The equipment is composed of main frame, main oil cylinder, energy-saving oil pressure system, feeding hopper, outlet oil cylinder, automatic binding system, pushing line system, touch screen control system, etc. It can compress the waste material automatically and bind the line automatically. It has high safety performance, fast packing speed, energy saving and high efficiency. It is an advanced automatic environmental protection mechanical equipment in the industry.
