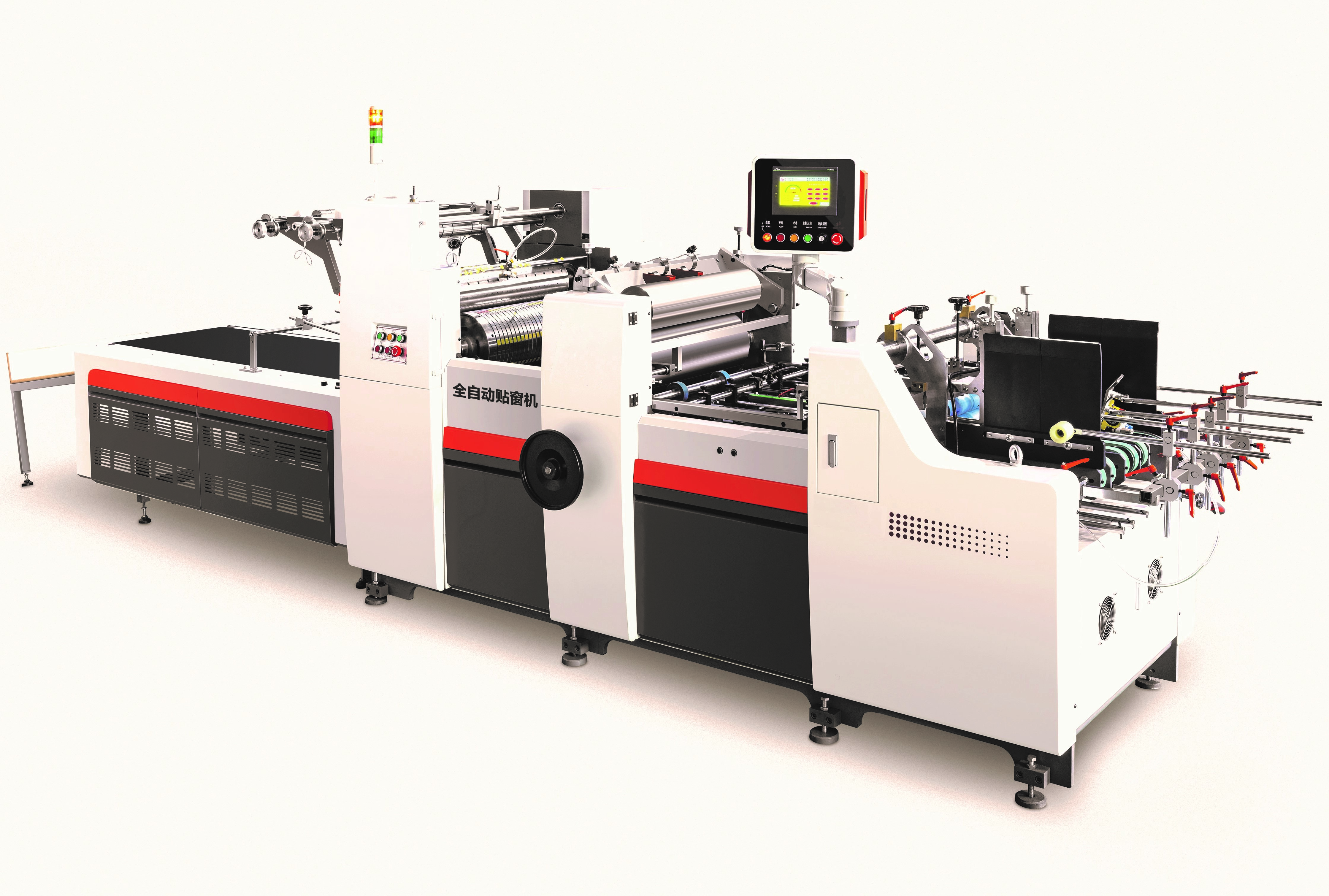

Description:

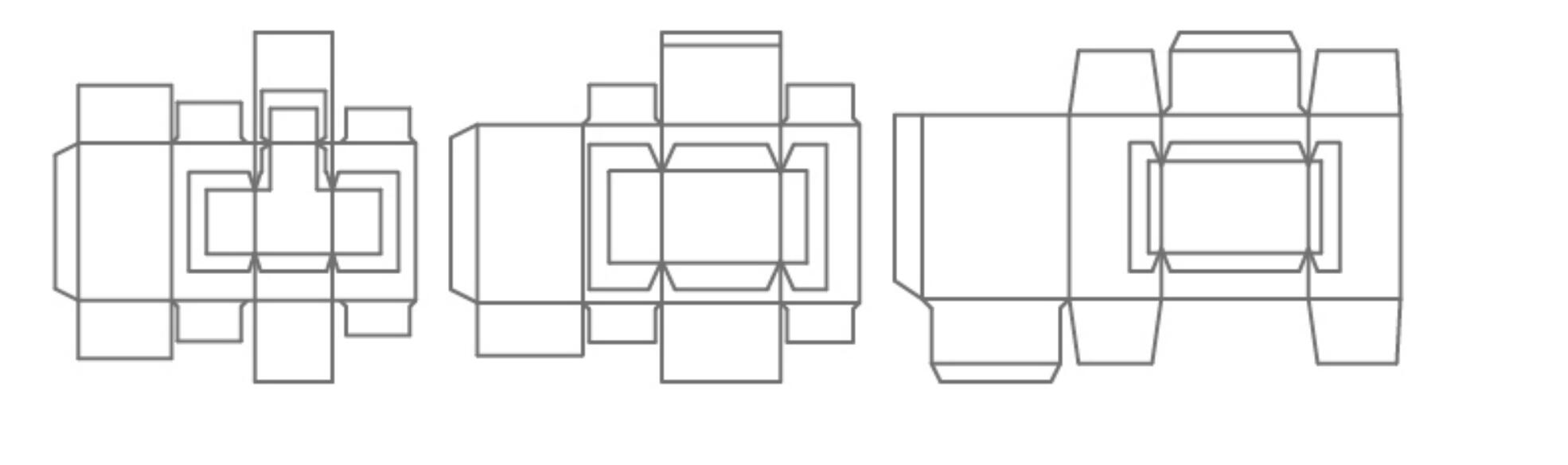

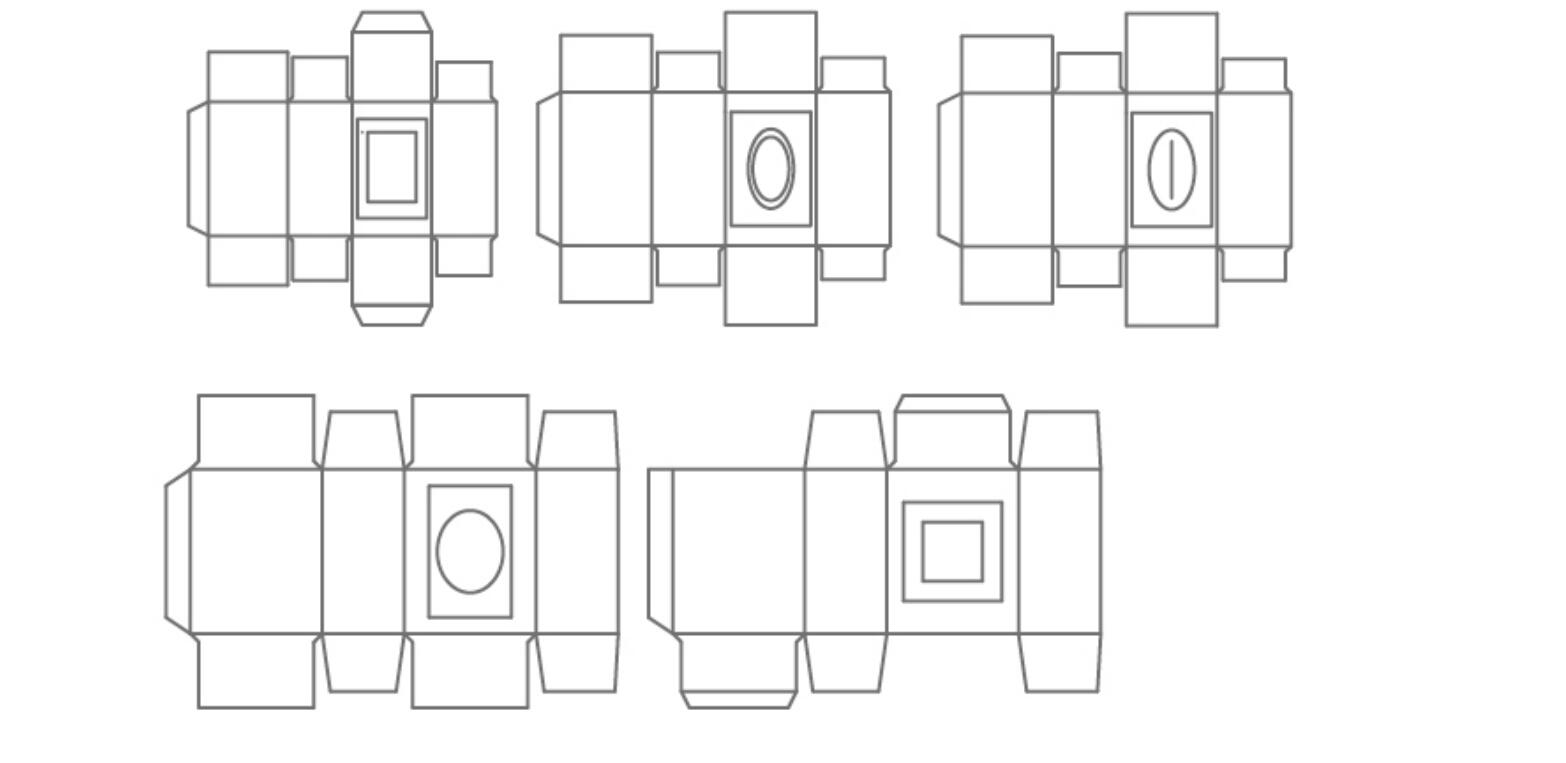

1. This machine is suitable for all kinds of paper box window and film patching. For example: tissue box, cosmetic box, toy box, mil box, etc.
2. This model has conpact structure, conveient adjustment, even glue application, accurate and firm film application, which is good helper for paper box flim processing.

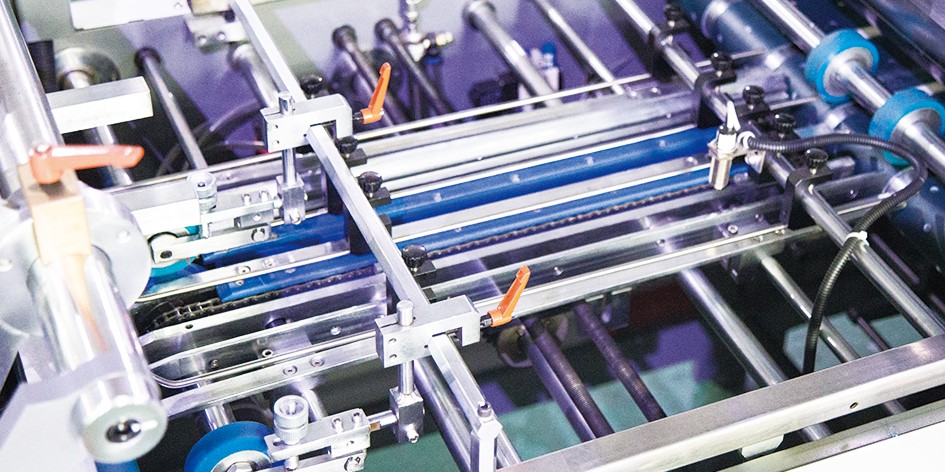

3. This machine adotps belt paper drawing mechanism, which can feed paper without stropping.

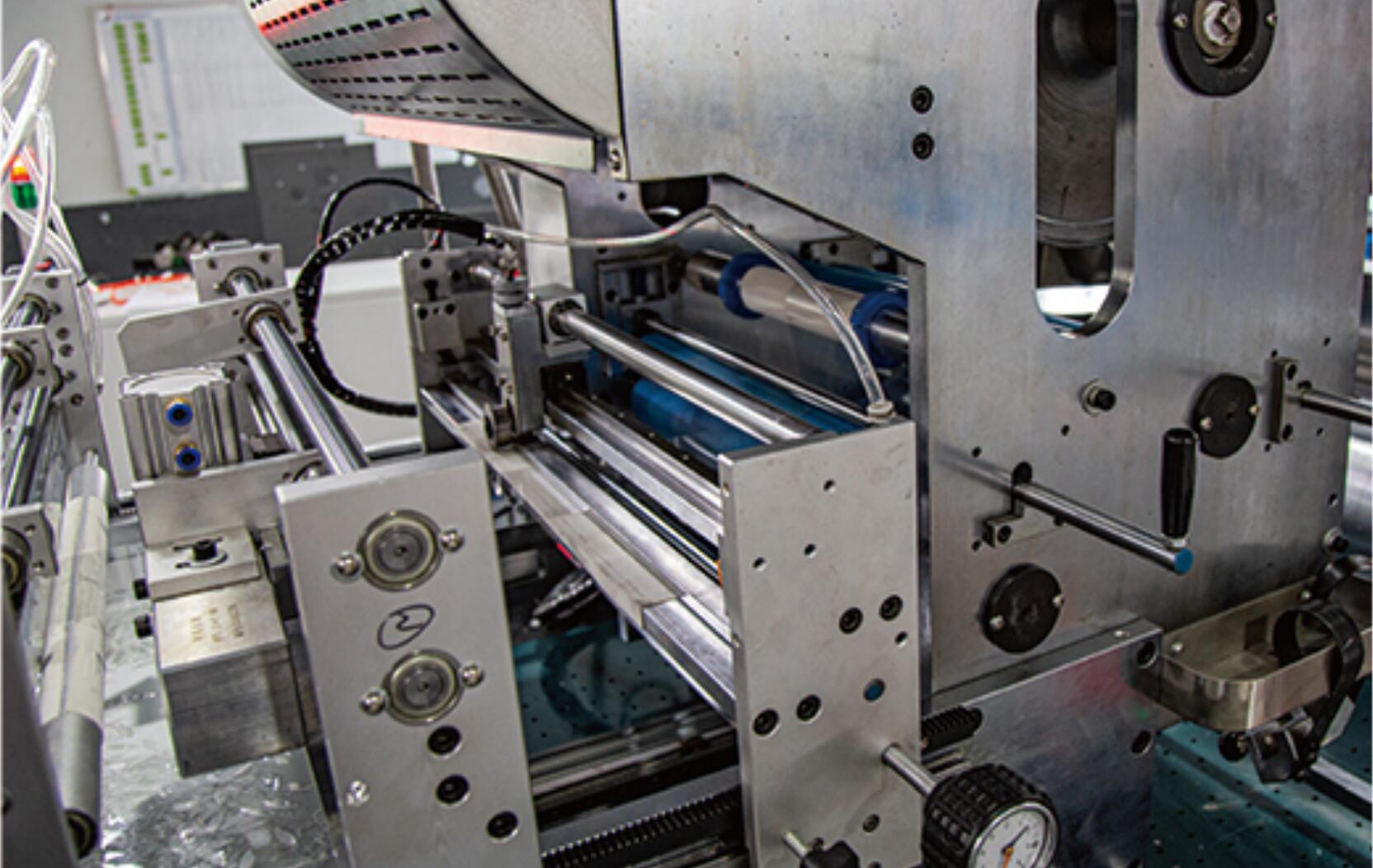

4. After positioning by push guare, the positioning is accurate and then the priting of flexible plate module ensures the uniformity of gluing.

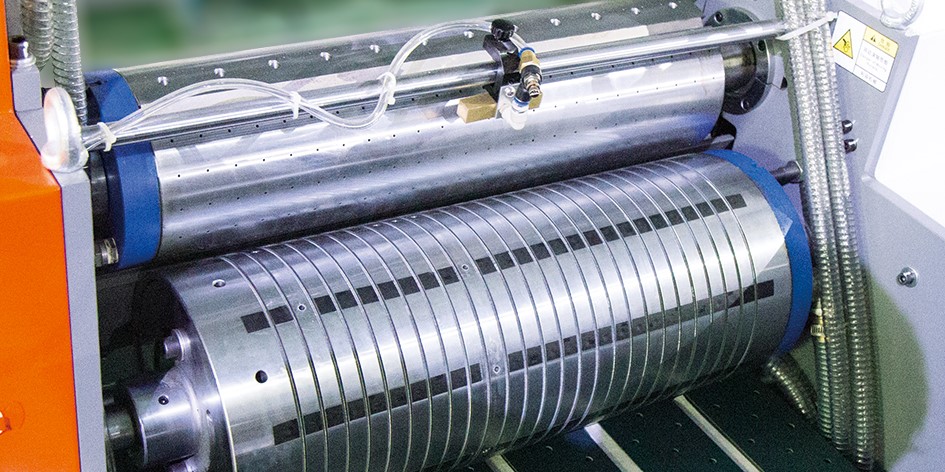

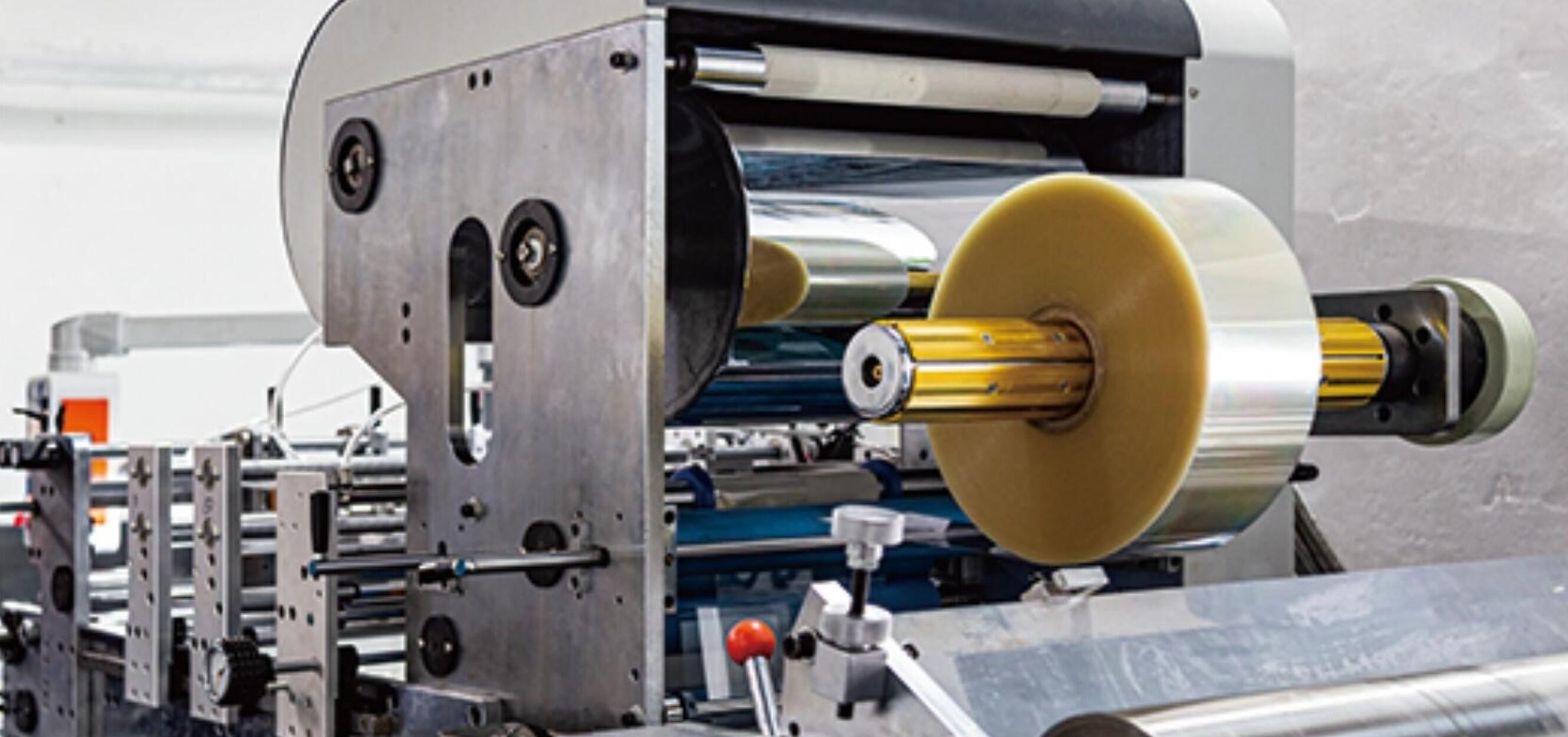

5.The suction roller will absorb a certain length of film and press it onto the paper.

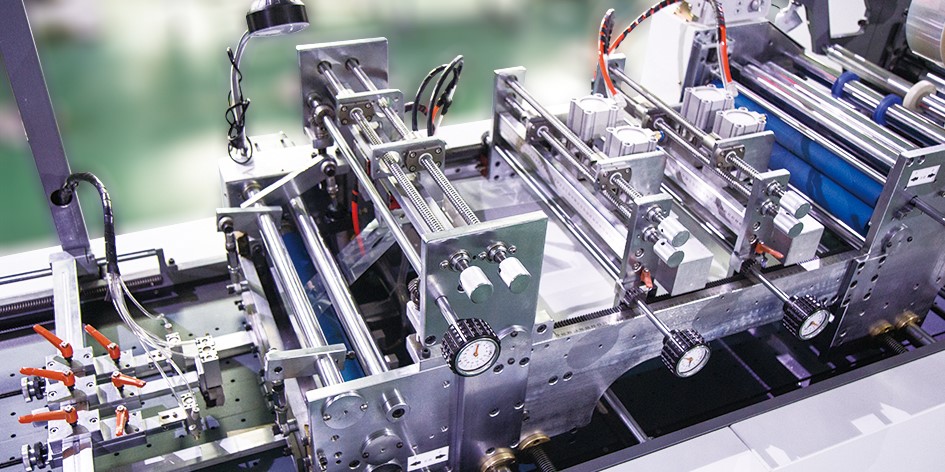

6. Finally, it's pressed and output by pressing wheel, which can adjust the equipment under the condition of no shutdown and improve the production efficiency.
| Model | 740 | 1060 |
| Max. Paper Size | 740 x 680 | 1060 x 680 |
| Min. Paper Size | 80 x 80 | 80 x 80 |
| Max. Patch Size (L x W) | 440 x 500 | 440 x 500 |
| Min. Patch Size (L x W) | 40 x 50 | 40 x 50 |
| Power (kw) | 10 | 12 |
| Film Thickness (mm) | PET: 0.05~0.25mm, PVC: 0.05~0.30mm | |
| Machine Weigth (ton) | 3 | 3.5 |
| Machine Size (mm) | 5500 x 1800 x 2000 | 5500 x 2000 x 2000 |
| Production Speed (sheet/hour) | 3000 ~ 16000 | |
| Paper Thickness | 200 gsm up to F flute, E flute corrugated board | |
Optional: Coner Cutting & Creasing (Production speed upto 7000 sheets/hour)
Optional: Horizontal Creasing System
Optional: Heating System
