Automatic double pieces folder gluer machine is used to paste AB parts of ardboard or corrugated board or laminated sheet to make high value box.
Description:
- Full servo drive and one key adjustment, memory storage function to achieve high accuracy forming and quick order set up.
- Equipped with high precision modular guide rails for each section, stepper plate shifting motor, movable and elaborate tooth lever design, easy and convenient for operation.
- Each functional components adopts modular design, convenient to assemble, to shift and debug two job products in shorter time.
Technical Data:
| Model | HL-1650AB-M | HL-2100AB-M | HL-2400AB-M |
| Suitable material |
Cardboard: 400~800gsm; Corrugated board: F/E/B/C/EE/EB/BB |
Cardboard: 400~800gsm; Corrugated board: F/E/B/C/EE/EB/BB |
Cardboard: 400~800gsm; Corrugated board: F/E/B/C/EE/EB/BB |
| Box type | Linear box, crash lock bottom, flat box by single or double peieces | Linear box, crash lock bottom, flat box by single or double peieces | Linear box, crash lock bottom, flat box by single or double peieces |
| Max. feeding width | 1650mm | 2100mm | 2400mm |
| Max. thickness of fold box | 15mm | 15mm | 15mm |
| Feeding method | Automatic continuous feeding | Automatic continuous feeding | Automatic continuous feeding |
| Max. speed | 200m/min | 200m/min | 200m/min |
| Glue type | Hot melt & cold glue | Hot melt & cold glue | Hot melt & cold glue |
| Inching speed | 20m/min | 20m/min | 20m/min |
| Power supply | 60.5kw, AC220V/380V | 60.5kw, AC220V/380V | 65kw, AC220V/380V |
| Machine weight | 17ton | 19ton | 21ton |
| Machine dimension | 21100*2500*1800mm | 21100*2900*1800mm | 21100*3200*1800mm |
| Compressed air | 6bar | 6bar | 6bar |
Box Parameter:

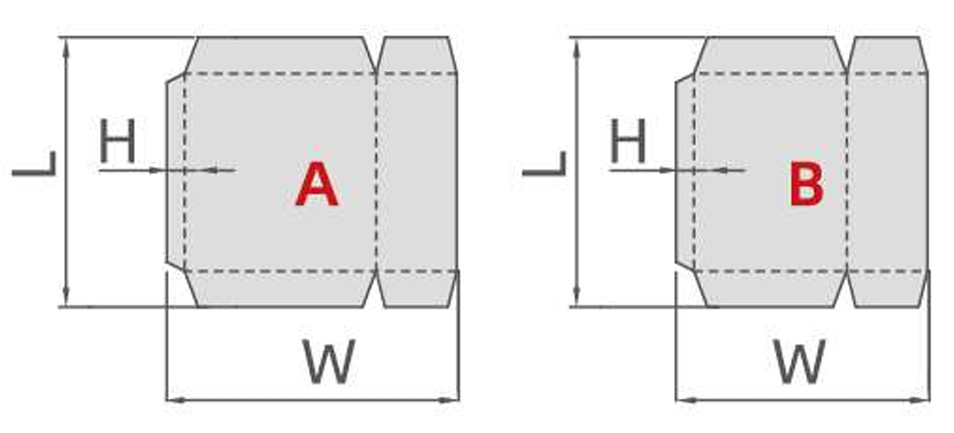

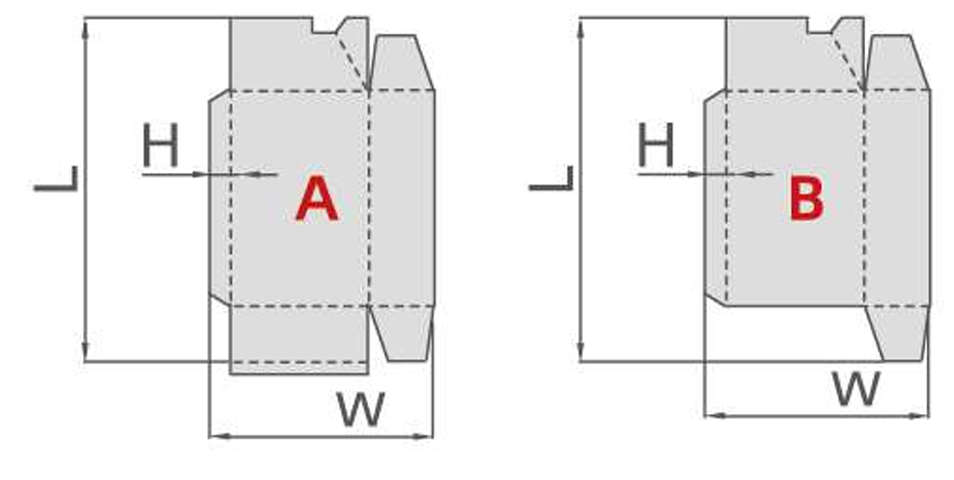

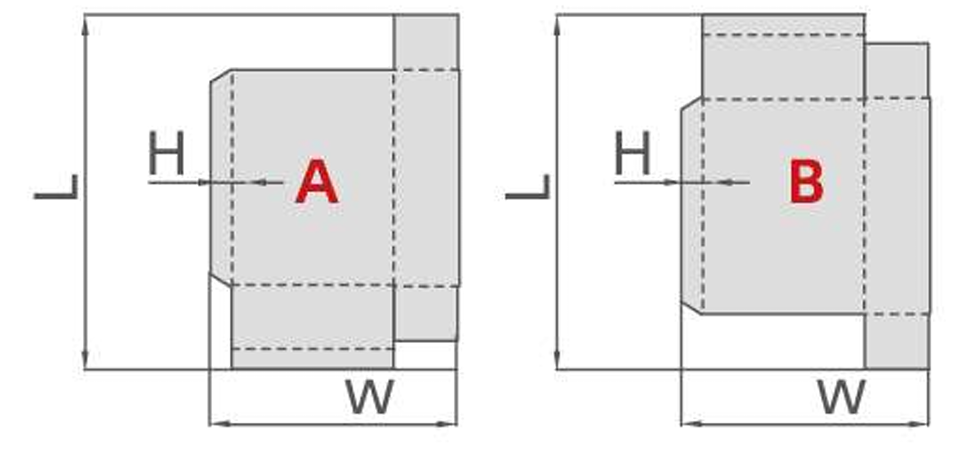

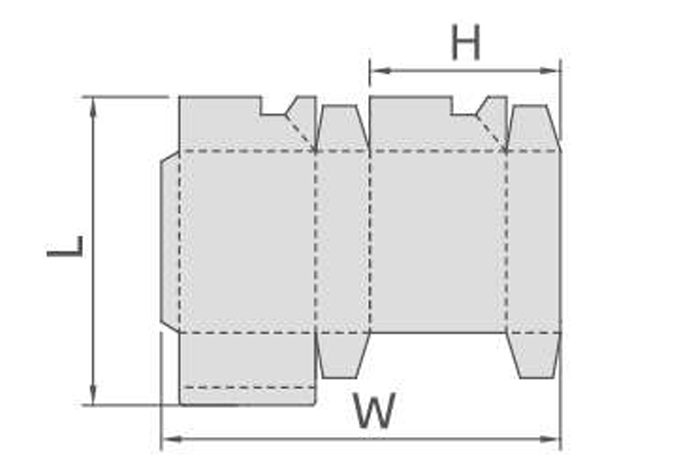

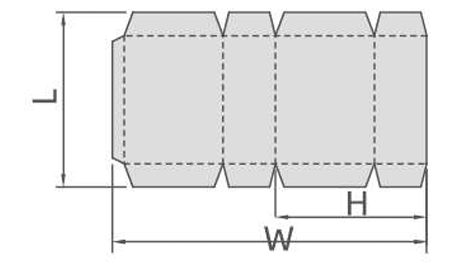

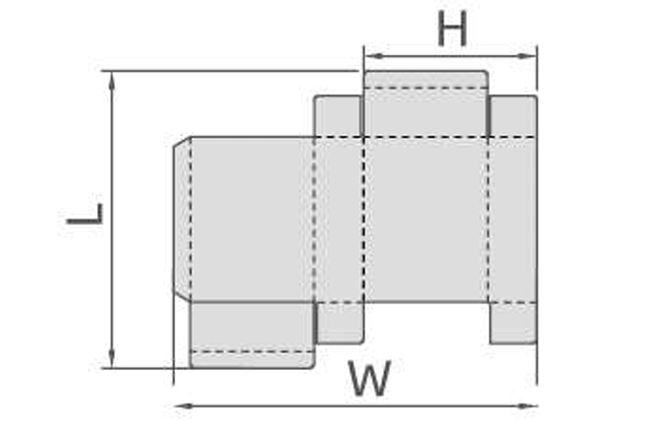

| Box type | Unfold view | HL1650AB-M | HL-2100AB-M |
| Linear box |  |
L:1000-160 W:1650-650 H: 815-310 |
L:1000-160 W:2100-650 H: 1035-360 |
| Crash lock bottom box |  |
L:1000-180 W:1650-750 H: 815-360 |
L:1000-180 W:2100-750 H: 1035-360 |
| Flat box |  |
L:1000-180 W:1650-650 H: 815-310 |
L:1000-180 W:2100-650 H: 1035-310 |
| Linear box |  |
A / B L:1300-300 W:825-420 H: 40-25 |
A / B L:1300-300 W:1050-420 H: 40-25 |
| Crash lock bottom box |  |
A / B L:1300-300 W:825-420 H: 40-25 |
A / B L:1300-300 W:1050-420 H: 40-25 |
| Flat box |  |
A / B L:1300-300 W:825-420 H: 40-25 |
A / B L:1300-300 W:1050-420 H: 40-25 |
Machine Layout:
