Main Characteristics:
- Adopting advanced Motion Control System, only need to input the sheet size and then the system will adjust automatically. Glue quantity display at screen, can be adjusted automatically.
- Maximum working speed is 16000 sheet/hour, the working efficiency was increased exponentially when compared to the previous model.
- Adopting advanced high speed motion control servo tracking system to ensure the laminating accuracy.
- It specializes in solving various deformations and warping double wall corrugated board, ensuring accuracy and efficiency, and escorting the follow-up die cutting.

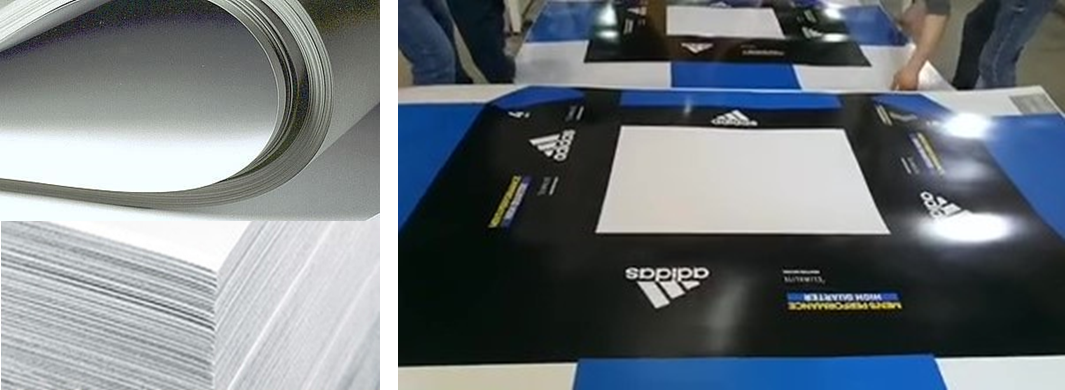

Top paper: 150 gsm up to 800 gsm cardboard (duplex, printed sheet)
Bottom Paper :
GE model: 250gsm cardboard, solid board up to 8mm corrugated board
GW model: G flute 2ply, solid board up to 10mm corrugated board
Specification:
|
Models |
GW–1450L |
GW-1700L |
GW-2200L |
|
|
Max.Sheet Size (WxL) |
1450mm x 1450mm |
1700mm x 1650mm |
2200mm x 2100mm |
|
|
Min.Sheet Size (WxL) |
450mm x 350mm |
450mm x 350mm |
450mm x 450mm |
|
|
Sheet Thickness |
Upper |
150gsm ~ 700gsm |
150gsm ~ 700gsm |
150gsm ~ 700gsm |
|
Bottom |
F flute ~ 8mm |
F flute ~ 8mm |
F flute ~ 8mm |
|
|
Max. Working Speed |
20000 sheets/hour (175M/Min) |
20000 sheets/hour (175M/Min) |
20000 sheets/hour (175M/Min) |
|
|
Laminating Accuracy |
±1mm(Standard Sheet Paper) |
|||
|
Applicable Glue |
Resin adhesive, starch glue and etc. (PH6~8 will be suitable for laminating glue) |
|||
|
Machine Weight |
8500kg |
9000kg |
10000kg |
|
|
Dimension (LxWxH) |
16.3m x 2.4m x 2.55m |
16.3m x 2.65m x 2.55m |
1.85m x 3.05m x 2.88m |
|
|
Power |
380V AC/3PH |
|||
|
26kw |
30kw |
32kw |
||
|
Applicable Corrugated board |
High Strength Normalization 2ply (A,B,E,F flute), 3ply, 5ply, etc. |
|||
