Two Feeders (up and down) Folder Gluer Stitcher machine is strongly run for flat box or irregular corrugated box, laminated box.
Description:
The speed of BC flute five layers corrugated board in a double feeders can reach 80m/min speed.
① Up and down error ≤ 1.5mm
② Left and right connection gap ≤+2mm
Double stitching box BC flute five layers corrugated board with a speed of up to 70m/min.
① The surface of the stitching wires is free of wear and tear
② The inner side of the box nail line is no need flipped over.
③ There is no obvious nail on the surface of the paper.
④ Nail head to within 8-10mm of the edge of the cardboard box.
⑤ The surface of the paper is free from scratches or damage
⑥ Up and down error ≤ 1.5mm
⑨ Left and right connection gap ≤+2mm
Technical Data:
| Box type | Unfold view | HL-1650AB-S | HL-2000AB-S | HL-2400AB-S | HL-2800AB-S |

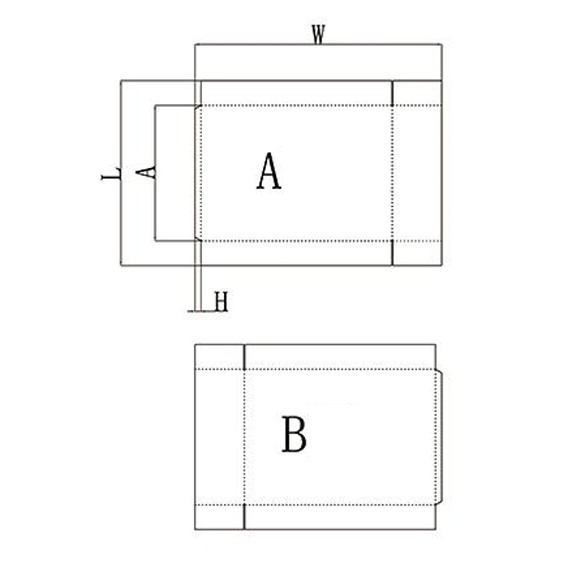

| Flat box |  |
W: 500~1600 L: 650~1600 A: 300~1000 |
W: 500~1900 L: 650~1500 A: 300~1000 |
W: 500~2300 L: 650~1500 A: 300~1000 |
W: 500~2700 L: 650~1500 A: 300~1200 |

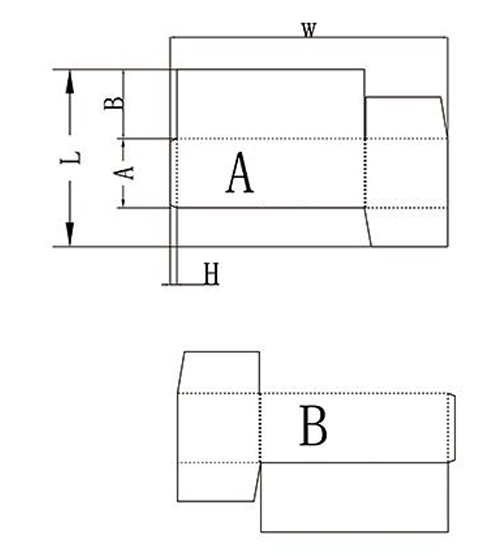

| Special shape box |  |
W: 500~1600 L: 650~1600 A: 300~1000 |
W: 500~1900 L: 650~1500 A: 300~1000 |
W: 500~2300 L: 650~1500 A: 300~1000 |
W: 500~2700 L: 650~1500 A: 300~1200 |

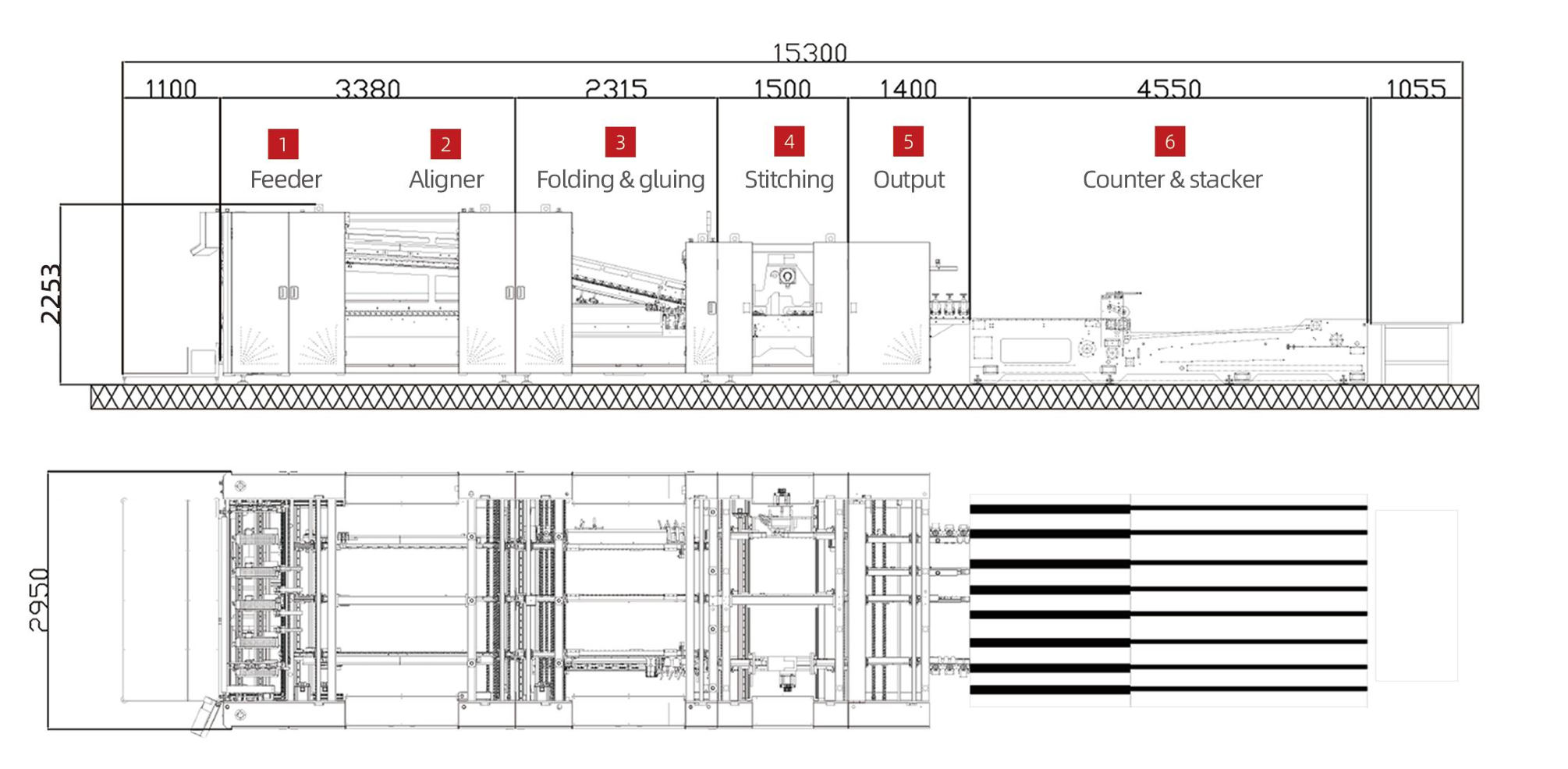

Machine Layout:
