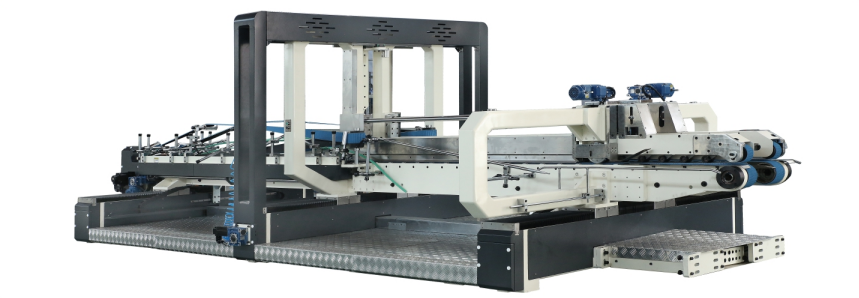

Description:
- The feeding unit adopts suction belt feeder. Side baffle can pat the corrugated paperboard.
- The gluing wheel is made of the stainless steel. Gluing pump supply the glue automatically. Glue less alarming and automatic cycle when the machine stops. Easy to be cleaned.
- Upper and down carrier moved by liner guide rail and motorized controlling.

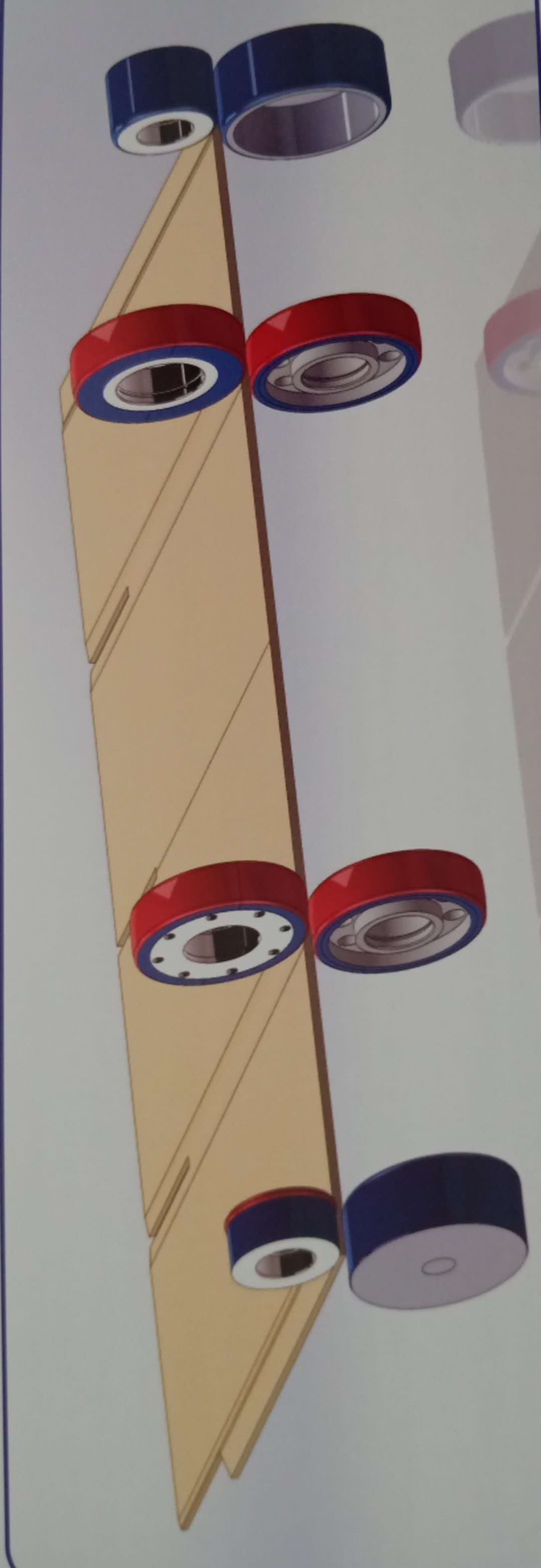

- The pre-creasing wheels are install for the second creasing line.
- The final folding unit adopts the servo motor driving for the precision folding.
- The all belts can be easy to be changed.
Technical Data

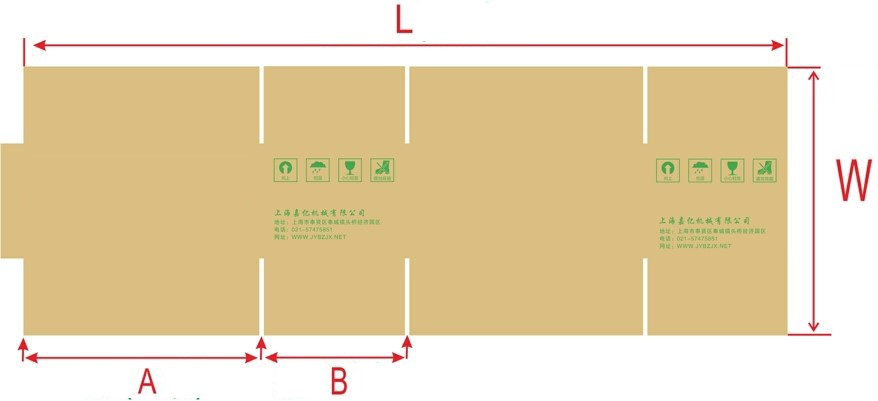

| Model | 1224B | 1226B | 1228B | 1632B | 1636B | 2536B | 2540B | 2542B | |||||||||
| max | min | max | min | max | min | max | min | max | min | max | min | max | min | max | min | ||
| folder gluer | L | 2400 | 560 | 2600 | 560 | 2800 | 560 | 3200 | 600 | 3600 | 600 | 3600 | 600 | 4000 | 600 | 4200 | 600 |
| W | 1200 | 250 | 1200 | 250 | 1200 | 250 | 1600 | 300 | 1600 | 300 | 2500 | 300 | 2500 | 300 | 2500 | 300 | |
| A | 800 | 140 | 900 | 140 | 1000 | 140 | 1200 | 150 | 1400 | 150 | 1400 | 150 | 1600 | 150 | 1700 | 150 | |
| B | 600 | 80 | 650 | 80 | 700 | 80 | 800 | 100 | 900 | 100 | 800 | 100 | 1000 | 100 | 1050 | 100 | |
| A+B | 1200 | 280 | 1300 | 280 | 1400 | 280 | 1600 | 300 | 1800 | 300 | 1800 | 300 | 2000 | 300 | 2100 | 300 | |
| stitcher | W | 2400 | 800 | 2600 | 800 | 2800 | 800 | 3200 | 800 | 3600 | 800 | 3600 | 800 | 4000 | 800 | 4200 | 800 |
| A | 1200 | 300 | 1200 | 300 | 1200 | 300 | 1600 | 350 | 1600 | 350 | 2500 | 350 | 2500 | 350 | 2500 | 350 | |
| B | 600 | 160 | 650 | 160 | 700 | 160 | 800 | 160 | 900 | 160 | 900 | 160 | 1000 | 160 | 1050 | 160 | |
| A+B | 1200 | 400 | 1300 | 400 | 1400 | 400 | 1600 | 400 | 1800 | 400 | 1800 | 400 | 2000 | 400 | 2100 | 400 | |
Feeding unit：
- Automatic vacuum suction belt feeding.
- Side baffle can pat the corrugated paperboard and ensure the feeding precision and moved by electrical buttons.
- Press-free paper feeding system: the surface of the paperboard against crushing, under the same conditions to improve the compressive strength of the paperboard.

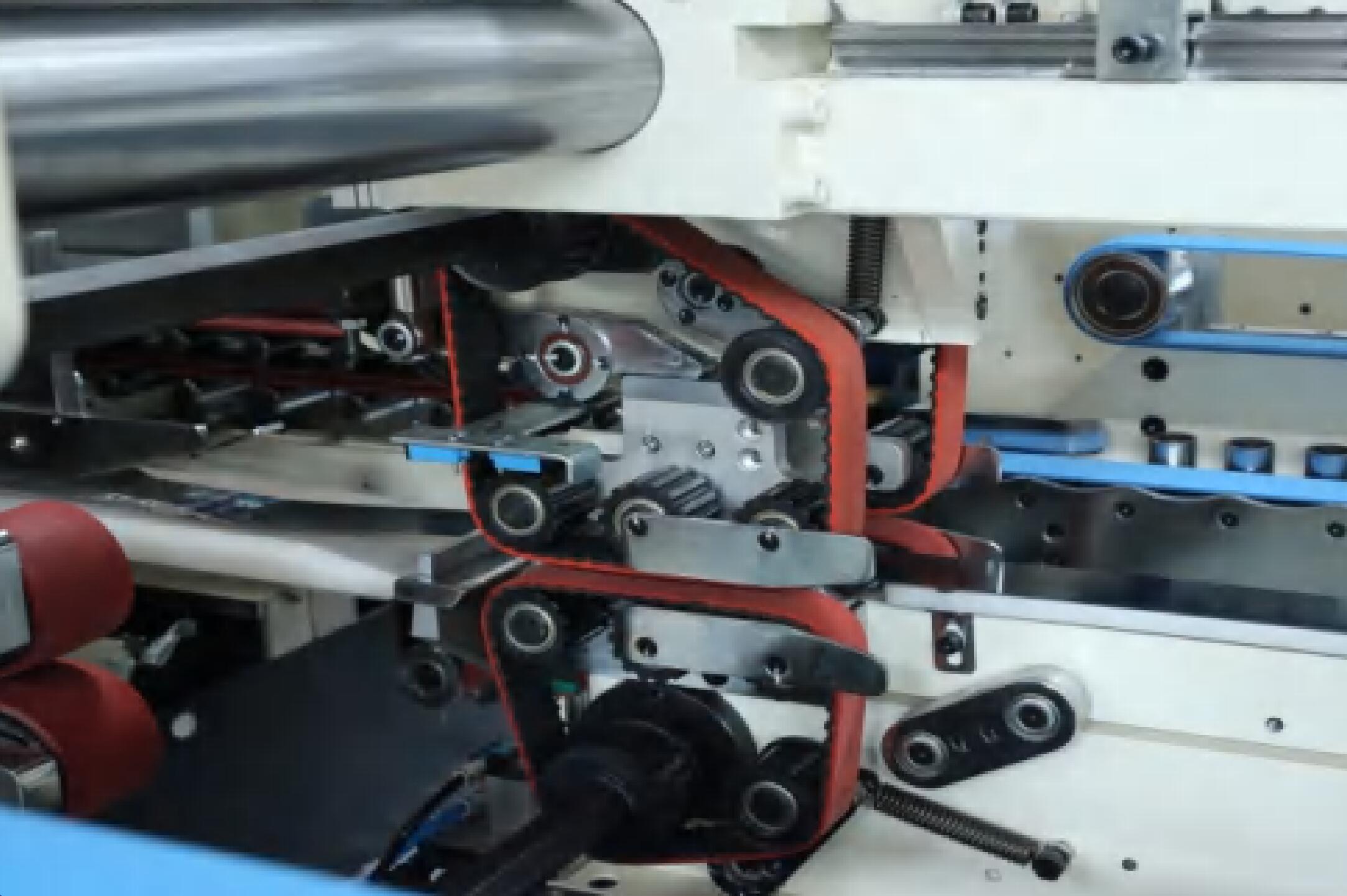

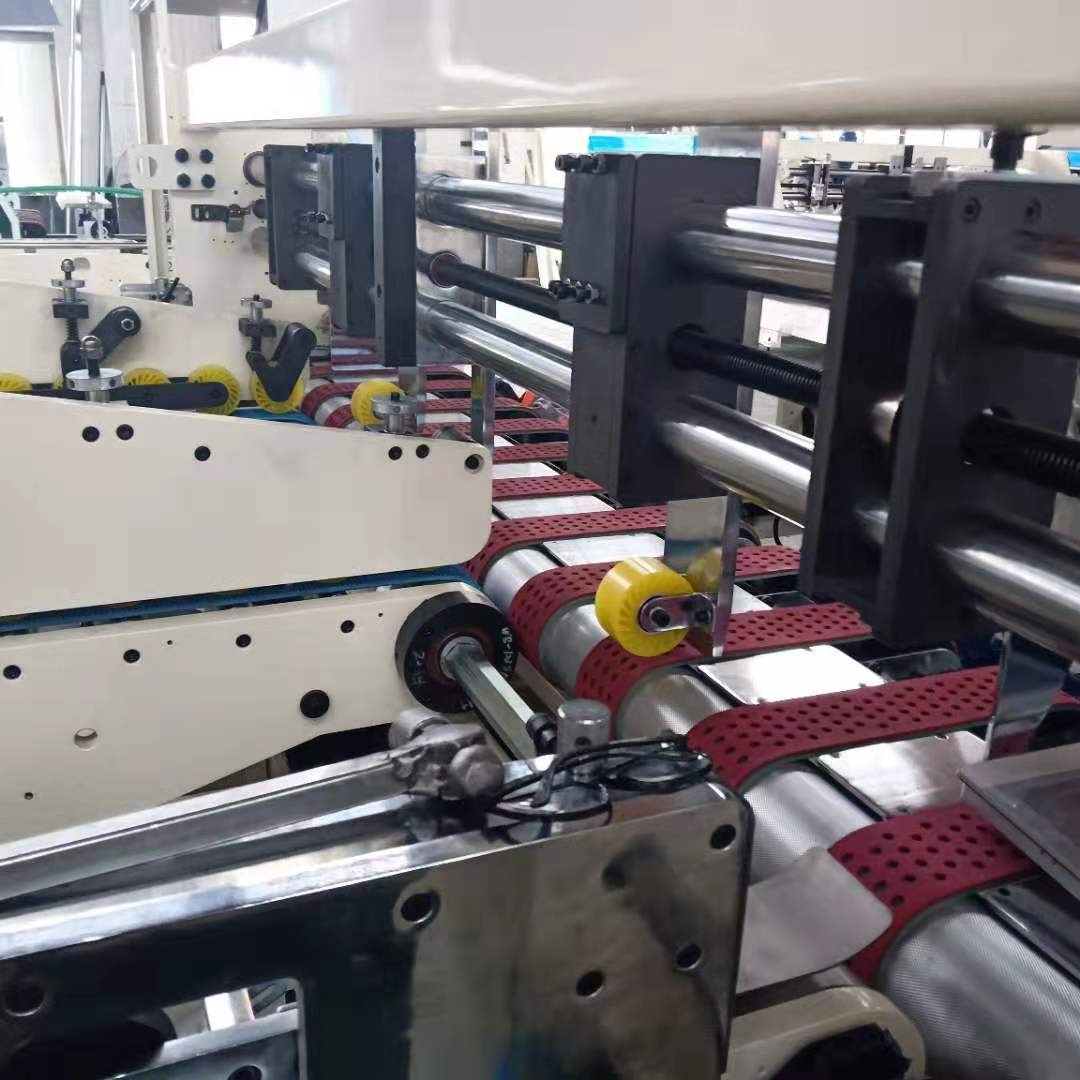

Folding unit:
- All down carrier are motorized movement.
- Upper creasing wheels to ensure the second creasing. And its driving by motor.
- Upper and down carrier moved by liner guide rail.
- Servo motors driving for the outer belts to ensure the folding precision.
- Independent frequency inverter motor driving for the final folding unit.

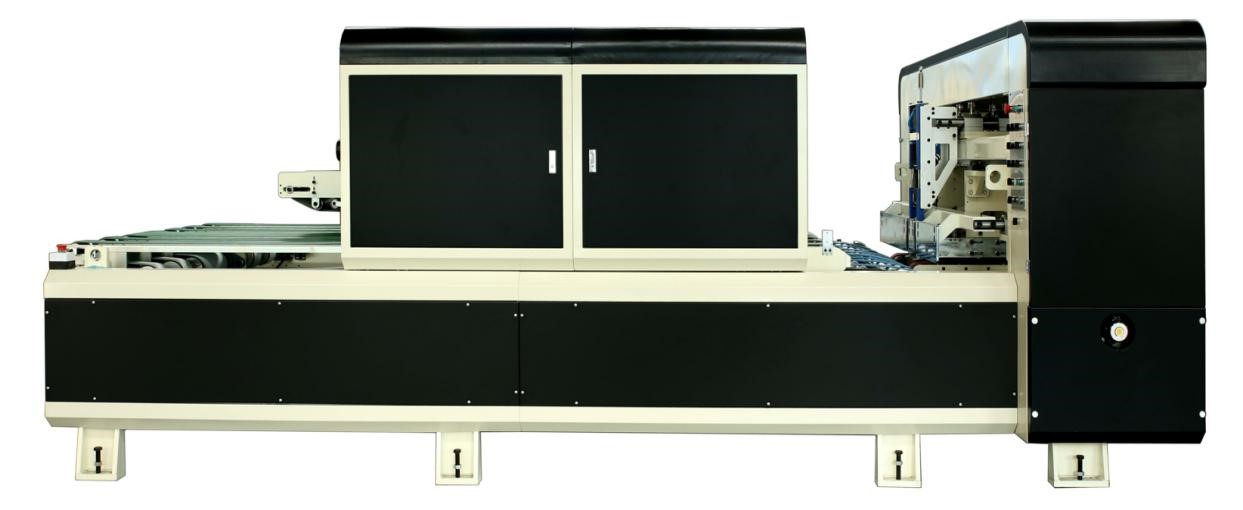

Stitching unit:
- Swing mode of the stitching head. The speed is fast, qualified precision and longer working life.
- The stitching head is driving by servo motor. It ensures the stitching precision and stable.
- It can be single stitching, double stitching, double-single-double stitching to be setting.
- The stitching head is with automatic lubrication system. The lubrication time and oil volume can be setting.
- The stitching heard can move up and down.
- The stitching unit installed cardboard patching devices is controlled by servo motor. It ensures the qualified rectify precision after cardboard folding before stitching. It ensures the stitching precision.
Counter Ejector unit:
- According to PLC touch screen programmer and control by touch screen.
- Input data advance the machine working. Auto detector can output the exact numb
- Counter and the push regulator using pneumatic mode.
- Piling height: stacking number can be set freely.
