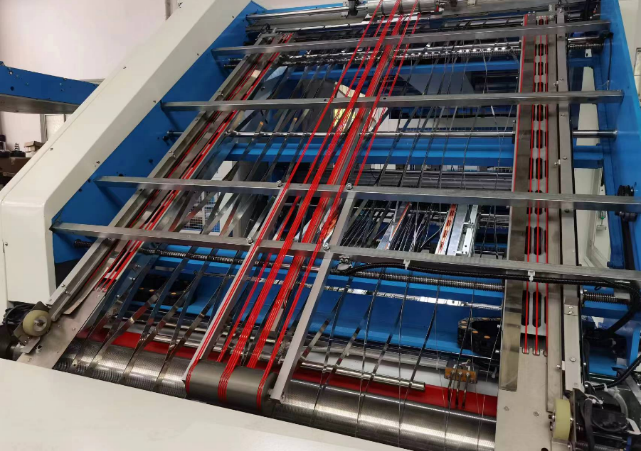

5ply Flute Laminator

Description:

• This 5ply paper laminator can laminate combination of two corrugated boards and any type of top sheet together. It can produce two layers board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.
• Laminating type:
• corrugated board + corrugated board + cardboard;
• corrugated board + corrugated board;
• corrugated + cardboard;
• cardboard + cardboard;
• cardboard + gray board + cardboard, etc.
• Automatic detection of top and bottom paper and automatic servo correction technology to make the top paper automatically track and fit the bottom paperboard at high accuracy.
• The bottom paper feeding section is equipped with the lead edge feeding system.
• The bottom paper feeding part use lead edge feeding system.
• Automatic thickness measure device together with two servo motors which can adjust the rollers gap automatically.
• Extended 8m conveyor pressing belt with carpet which can press smoothly and ensure the sticky much better.
• The multifunctional rack of the bottom paper are suitable for curved corrugated.
• Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.
• The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
• Special polyethylene materials on the surface of the pressure roller, glue is automatically dropped off, free scrubbing.
• Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
• One-click adjustment of the whole machine (just enter the paper size).
• Equipped with video monitoring system.

Technical Data:

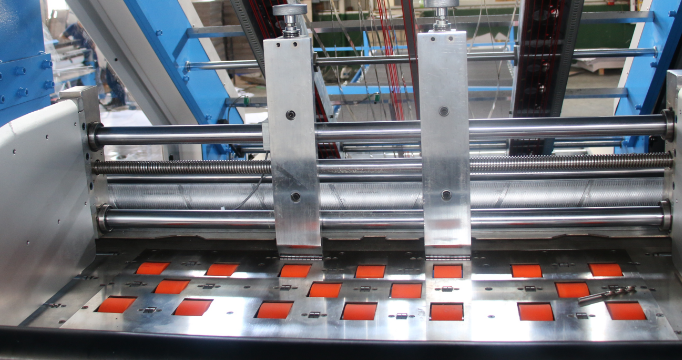

BOTTOM FEEDER (Lead Edge Feeder, Middle & Bottom) Option Suction Belt Feeder:

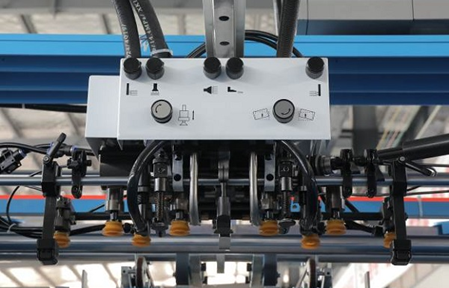

Top Feeder: (Servo Drive)

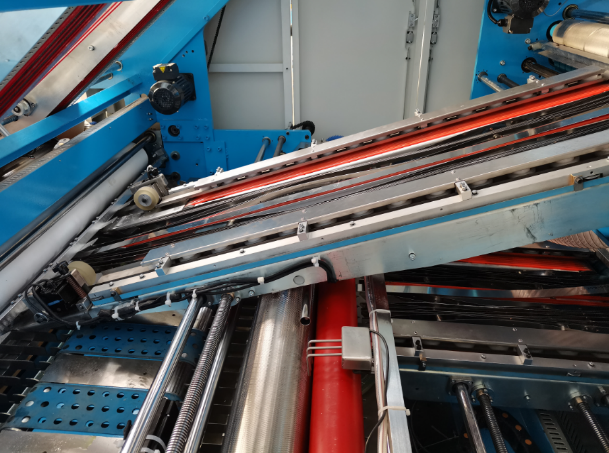

Poisitioining & Glue Section:

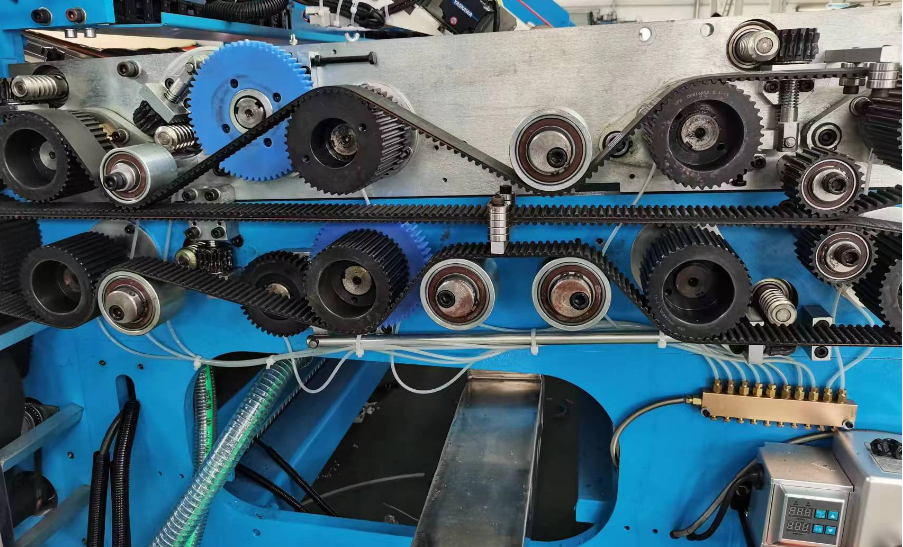

Transmission System:

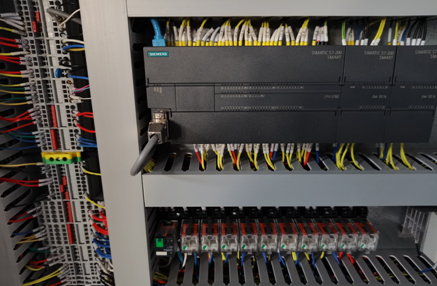

Electric Control System:
