Technical Data:
Size (mm) | 1800 | 2200 | 2500 |
Production speed (m/min) | 150 | 200 | 300 |
Flute type | N,G,F,E,B,C,A | ||
Daily output (m²) |
162,000 |
297,000 | 337,500 |
Machine Layout (m) (L*W*H) | 20~30x10x5 | 20~30x10x5 | 20~30x10x5 |
Suggest Factory Land (m²) | 3000~5000 | 3000~5000 | 3000~5000 |
Steam consumption | 1000kg/h(1.1-1.2Mpa) | ||
Power supply | ~150KW ,~380Vac, 50HZ, 3 phases 4 wires |

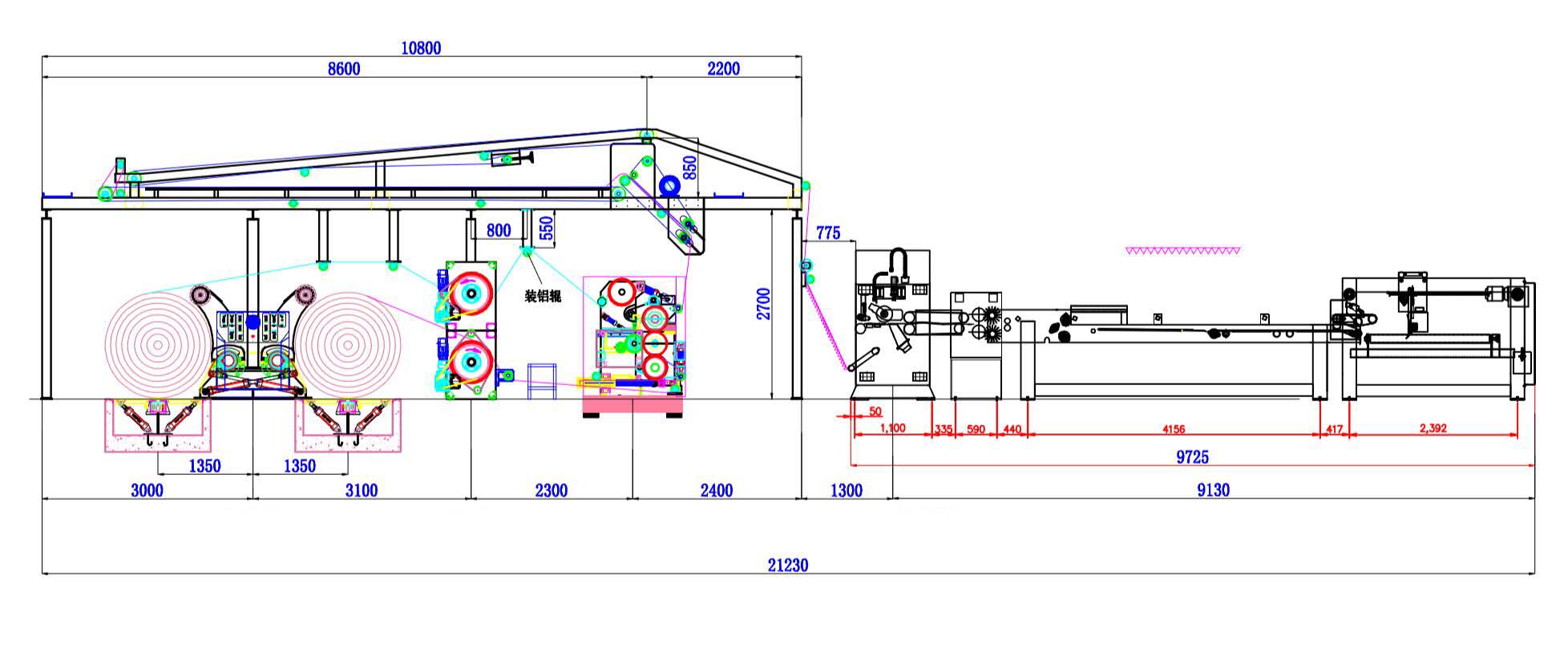

2ply (2 layers) Corrugated Board Production Line:

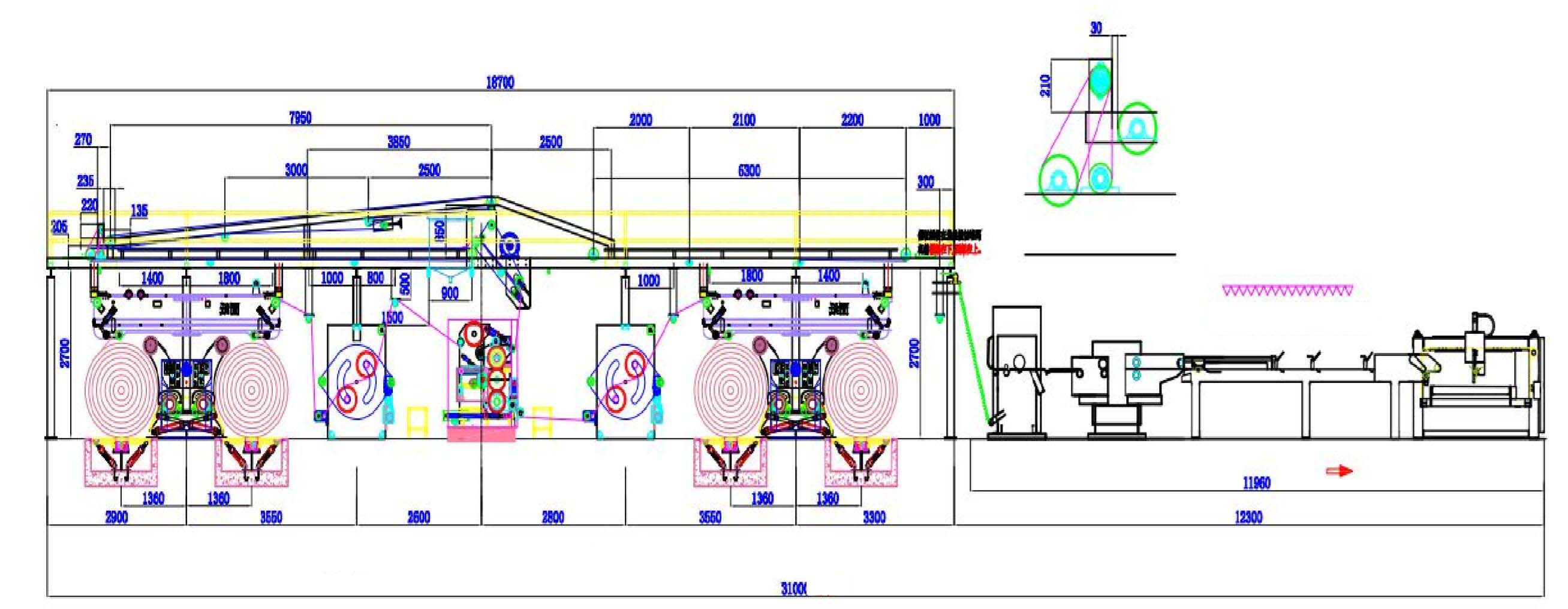

Corrugated Board Line Layout:
