Technical Data:
Size (mm) | 2200 | 2200 | 2200 |
Production speed (m/min) | 200 | 250 | 300 |
Flute type | N,G,F,E,B,C,A | ||
Monthy output (m²) |
6.6 million |
8.4 million |
10.2 million |
Machine Layout (m) (L*W*H) | 90~105x10x5 | 90~105x10x5 | 90~105x10x5 |
Suggest Factory Land (m²) | >10000 | >10000 | >10000 |
Steam consumption | 3000kg/h(1.1-1.2Mpa) | ||
Power supply | ~350KW ,~380Vac, 50HZ, 3 phases 4 wires |

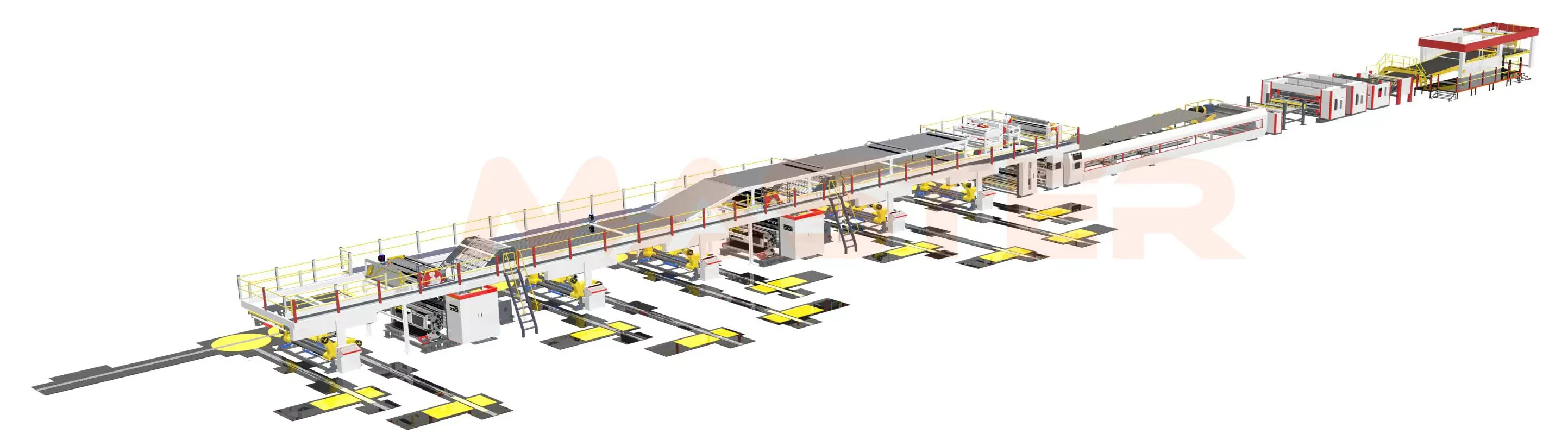

5ply (5 layers) Corrugated Board Production Line / Double Wall Corrugated Board Production Line:

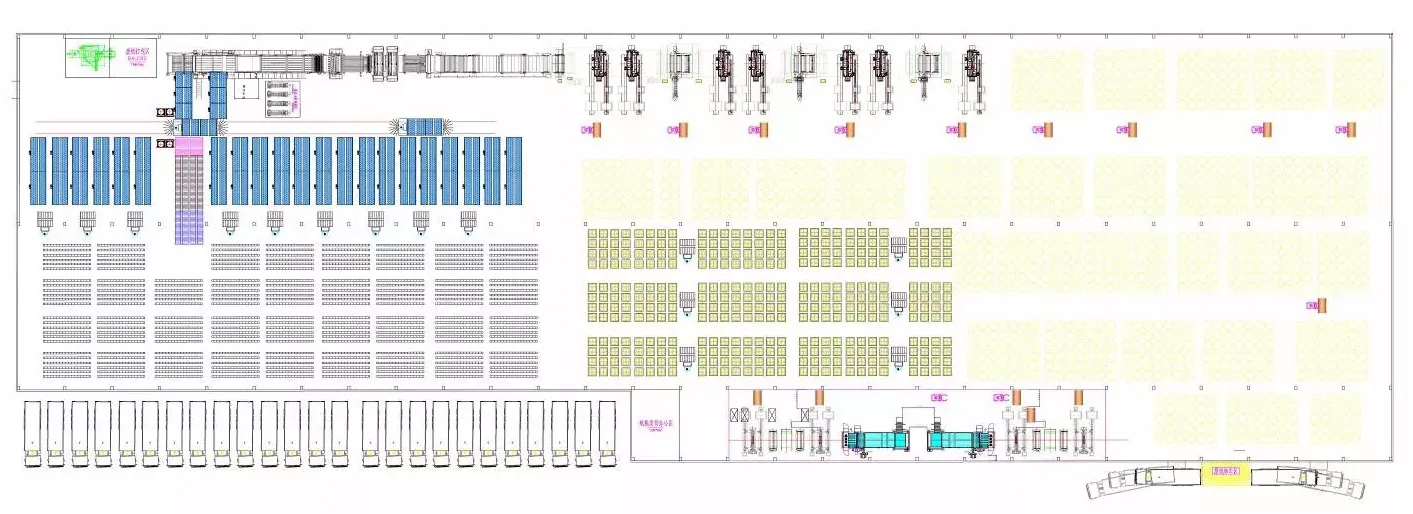

Corrugated Board Factory Layout:
Corrugated Box Factory Layout:
